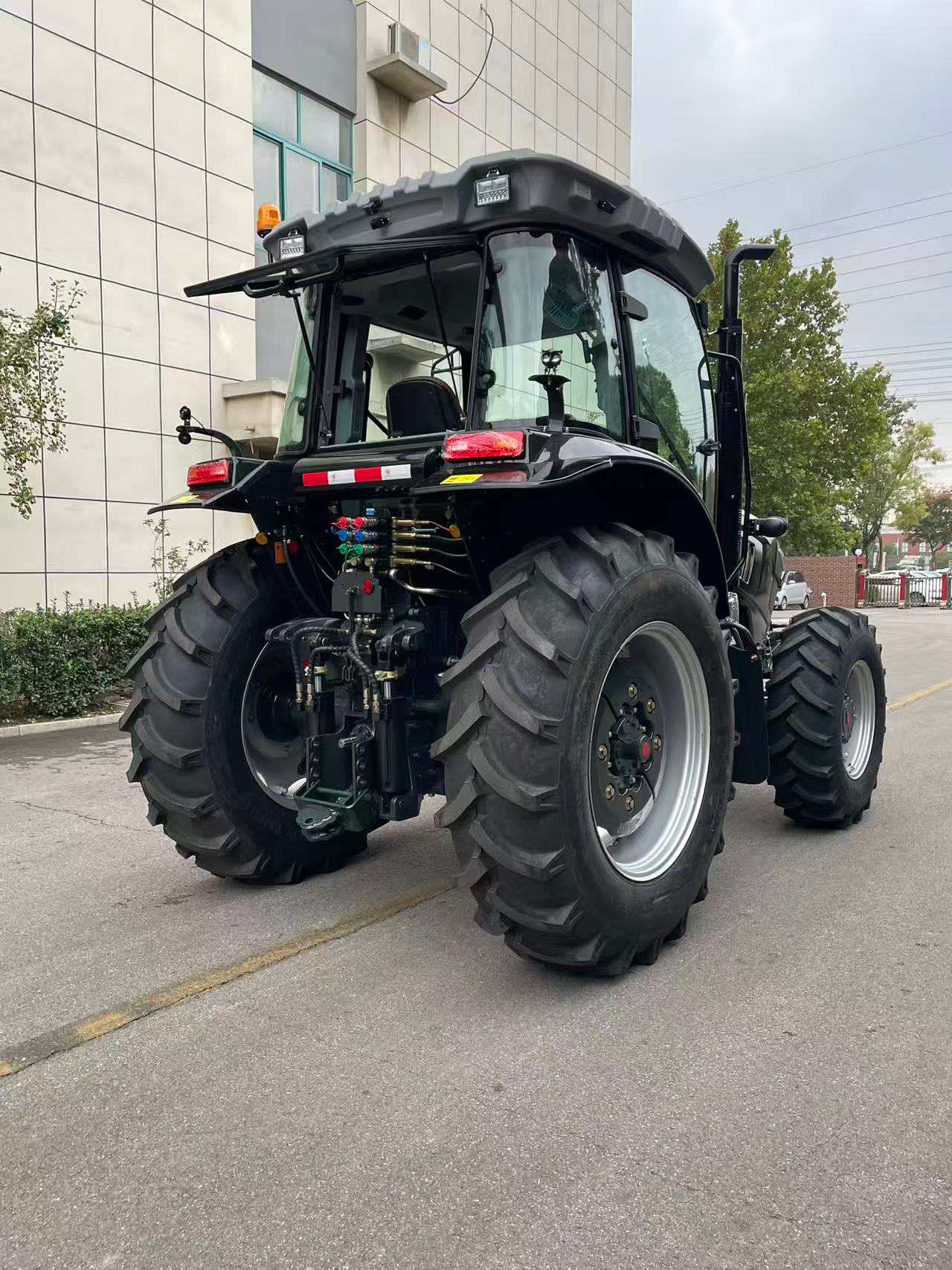

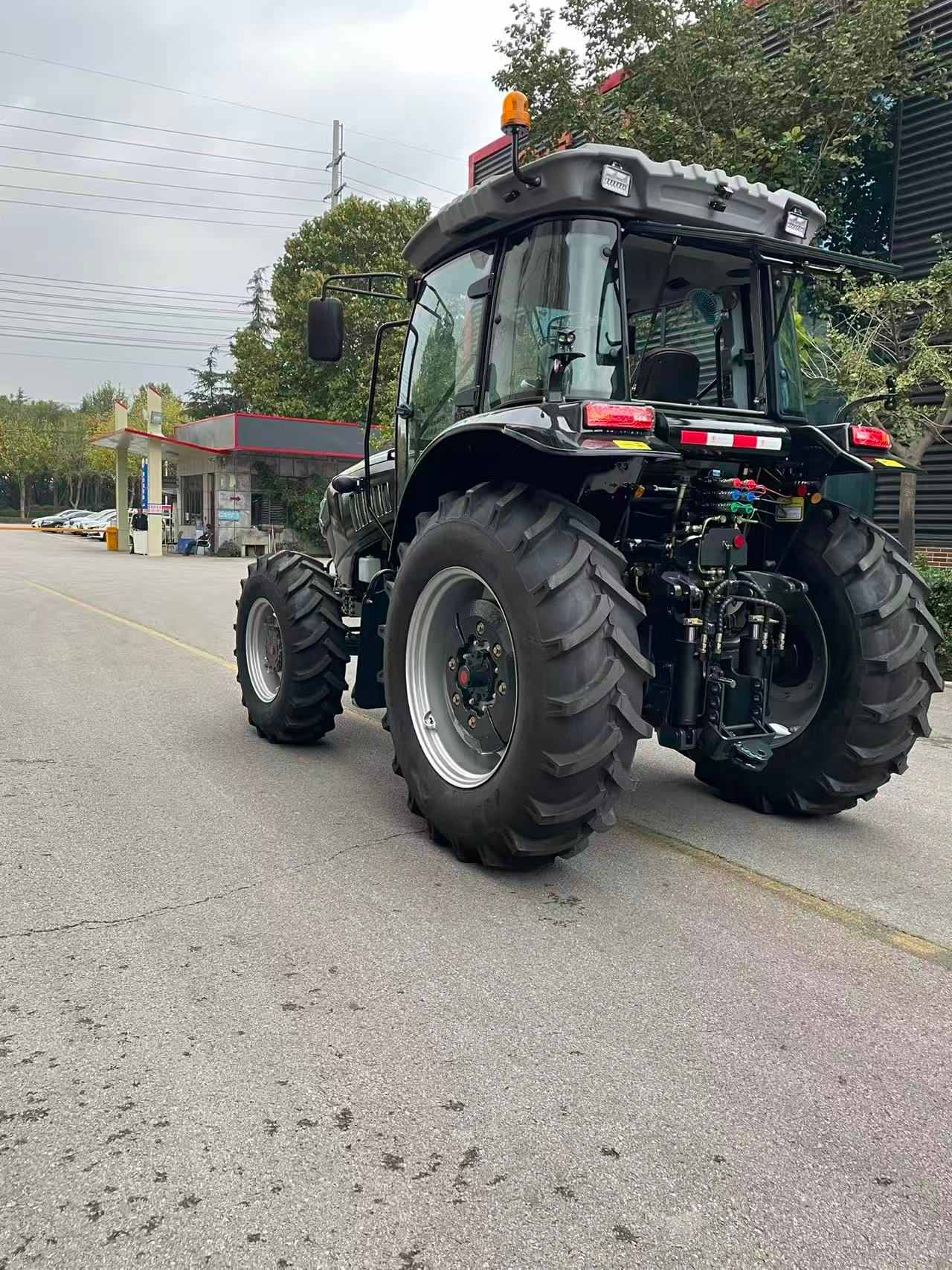

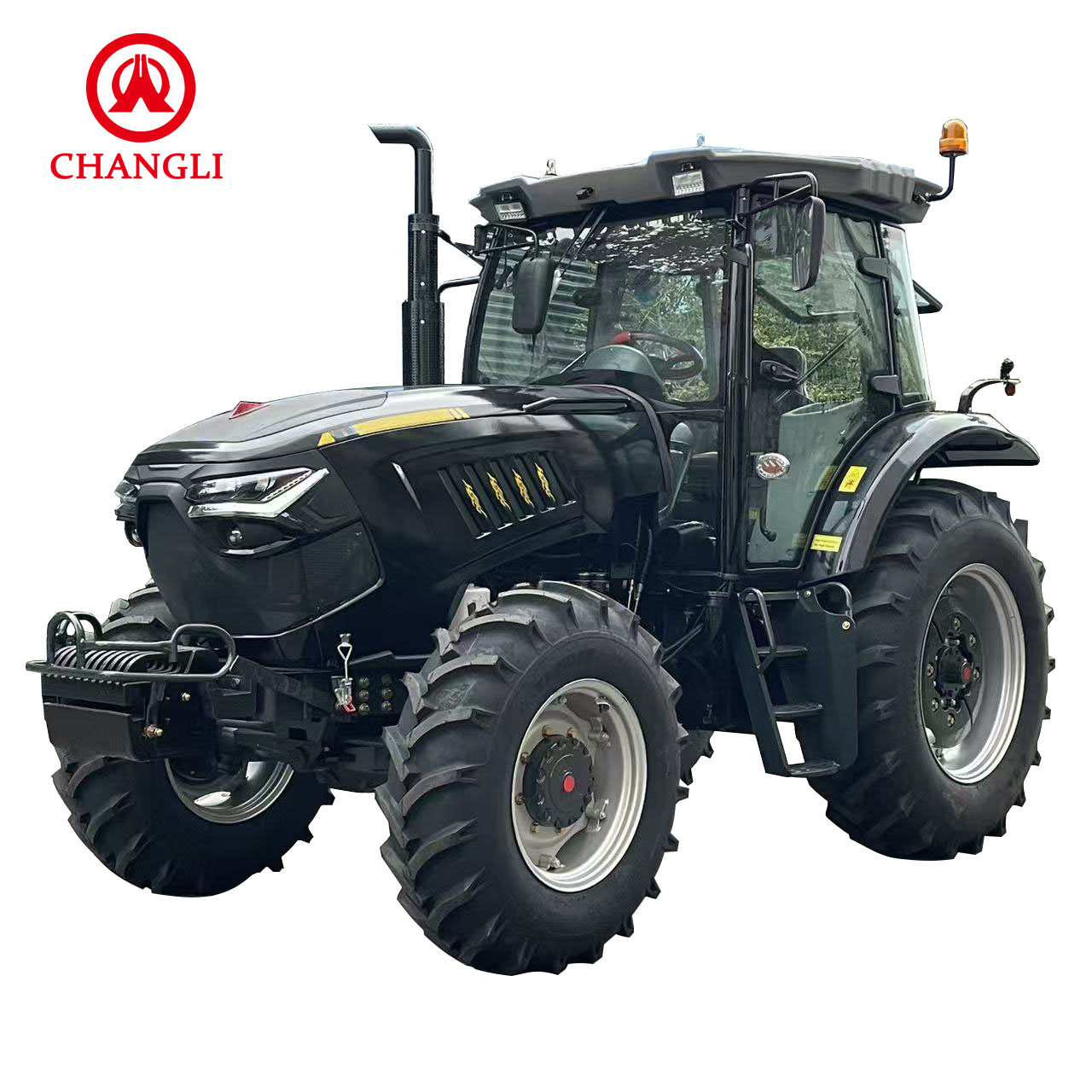

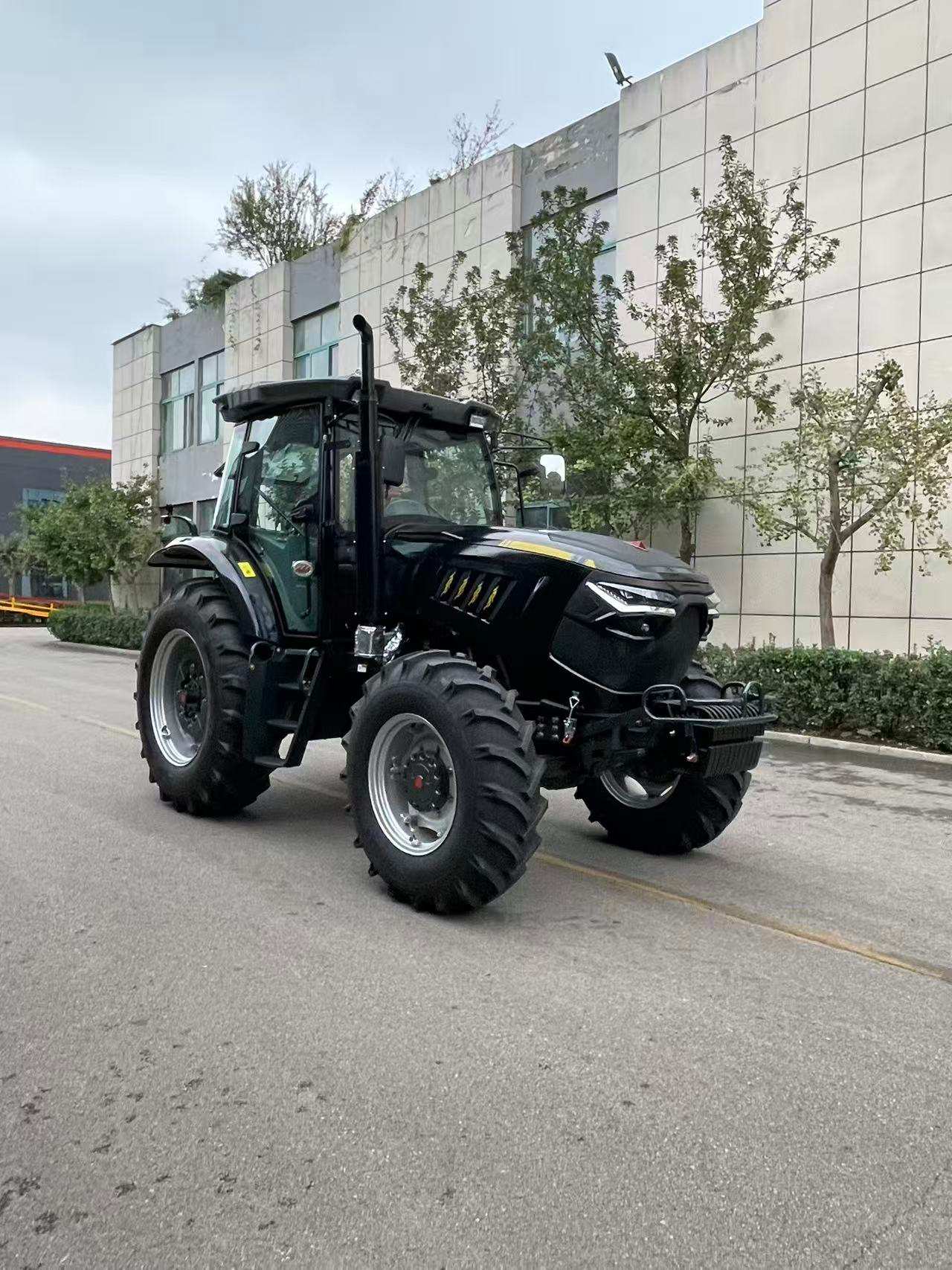

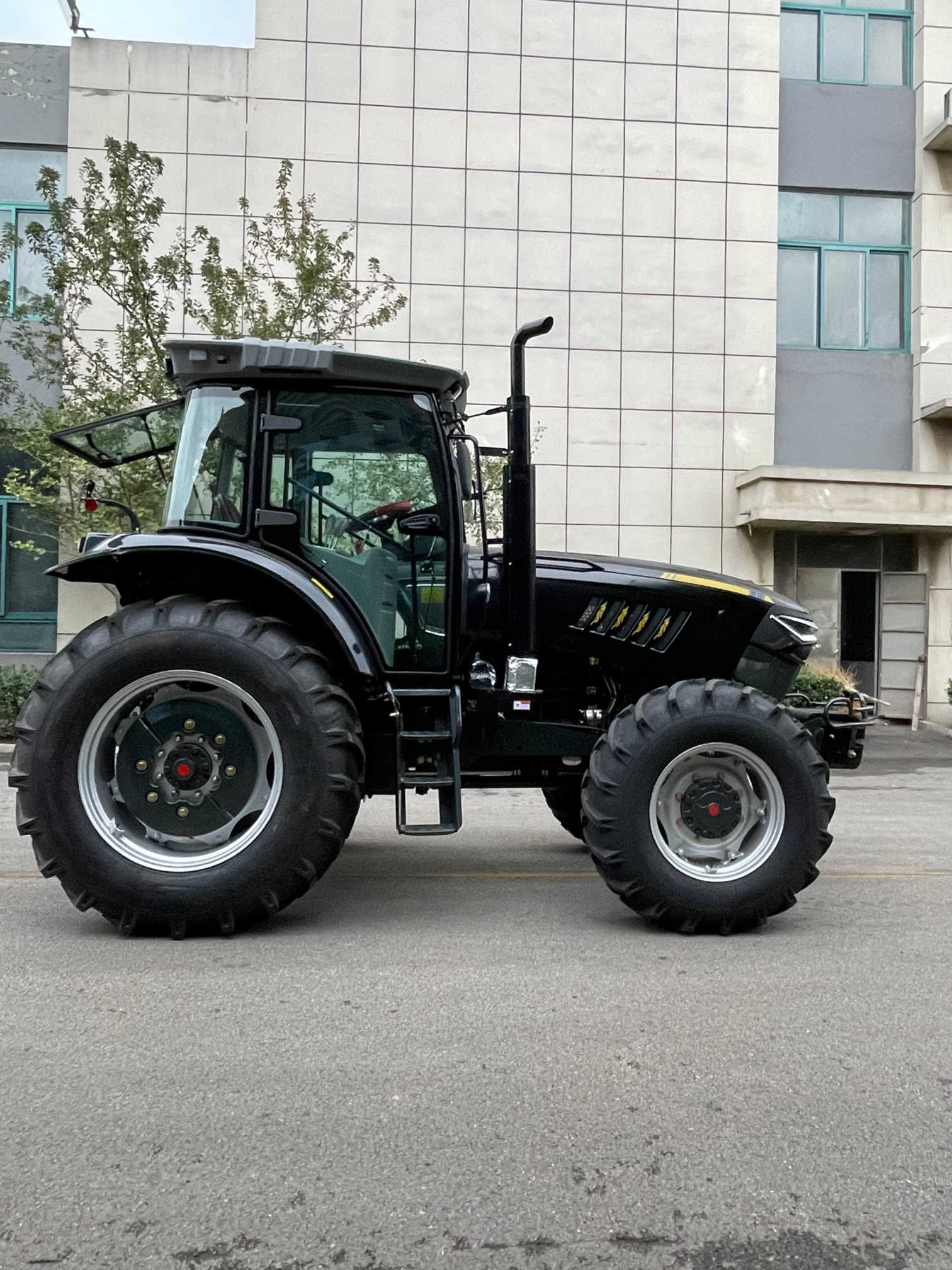

100HP 4WD Farm Tractor with Cabin Color Black CL1004-TD
This 100 horsepower wheeled tractor is equipped with well-known engines such as Weichai/Yituo, with sufficient torque reserve and multi power regulation technology, providing strong power and excellent fuel economy. Matched with a reinforced TD chassis and 16F+8R gearbox, the gear distribution is reasonable, suitable for various agricultural needs such as deep plowing and sowing, and the reliability of load-bearing and transmission is outstanding.
The walking system is equipped with well-known tires such as Taishan/ADVANCE brand agricultural specific tires, which can be selected in specifications such as paddy fields and Zhonghua, and are wear-resistant and puncture resistant, suitable for different land environments.

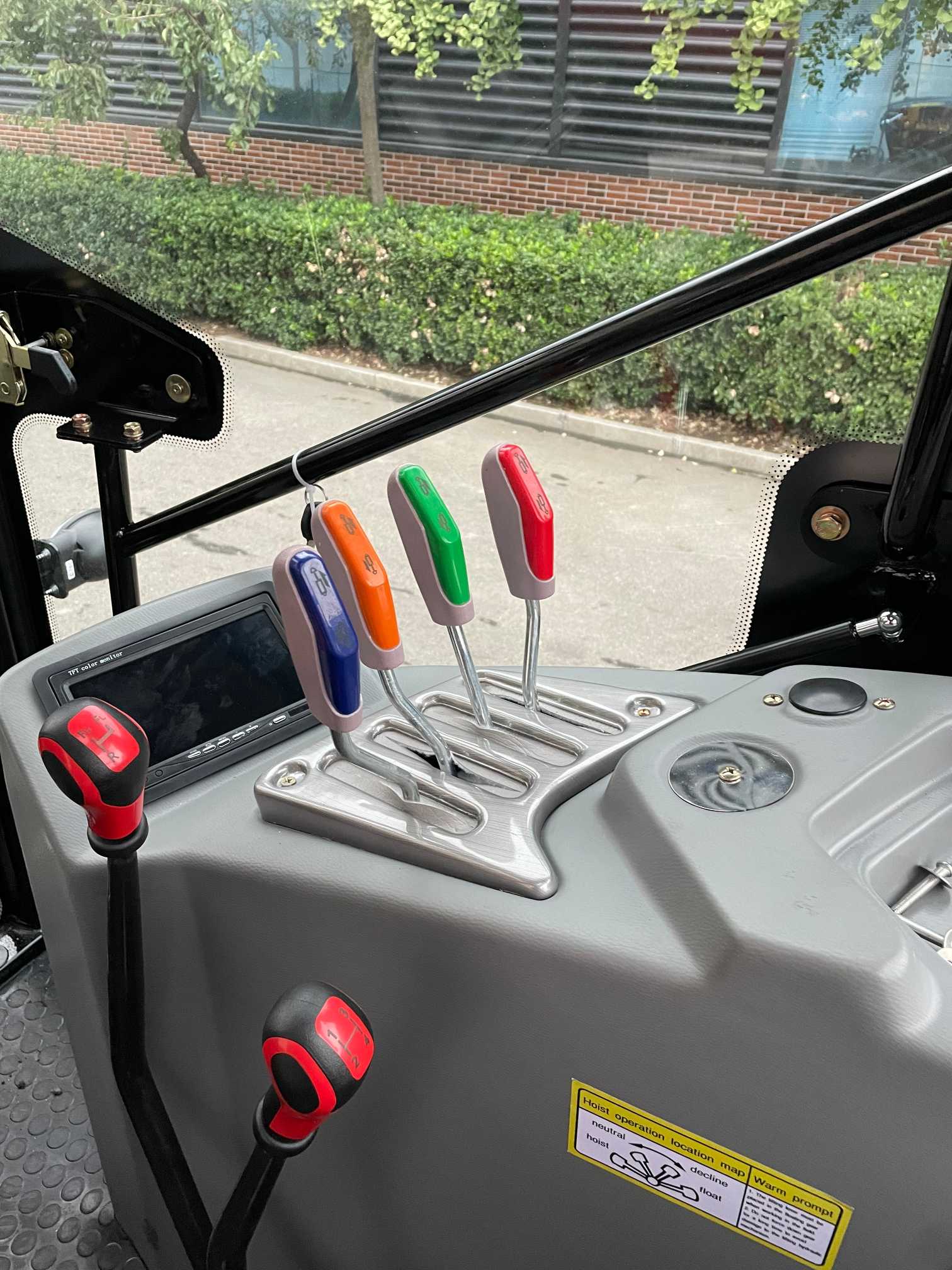

The hydraulic system is equipped with a three-way multi way valve, which supports continuous flow adjustment and can simultaneously drive various agricultural machinery such as seeders and fertilizing machines, greatly improving operational efficiency.

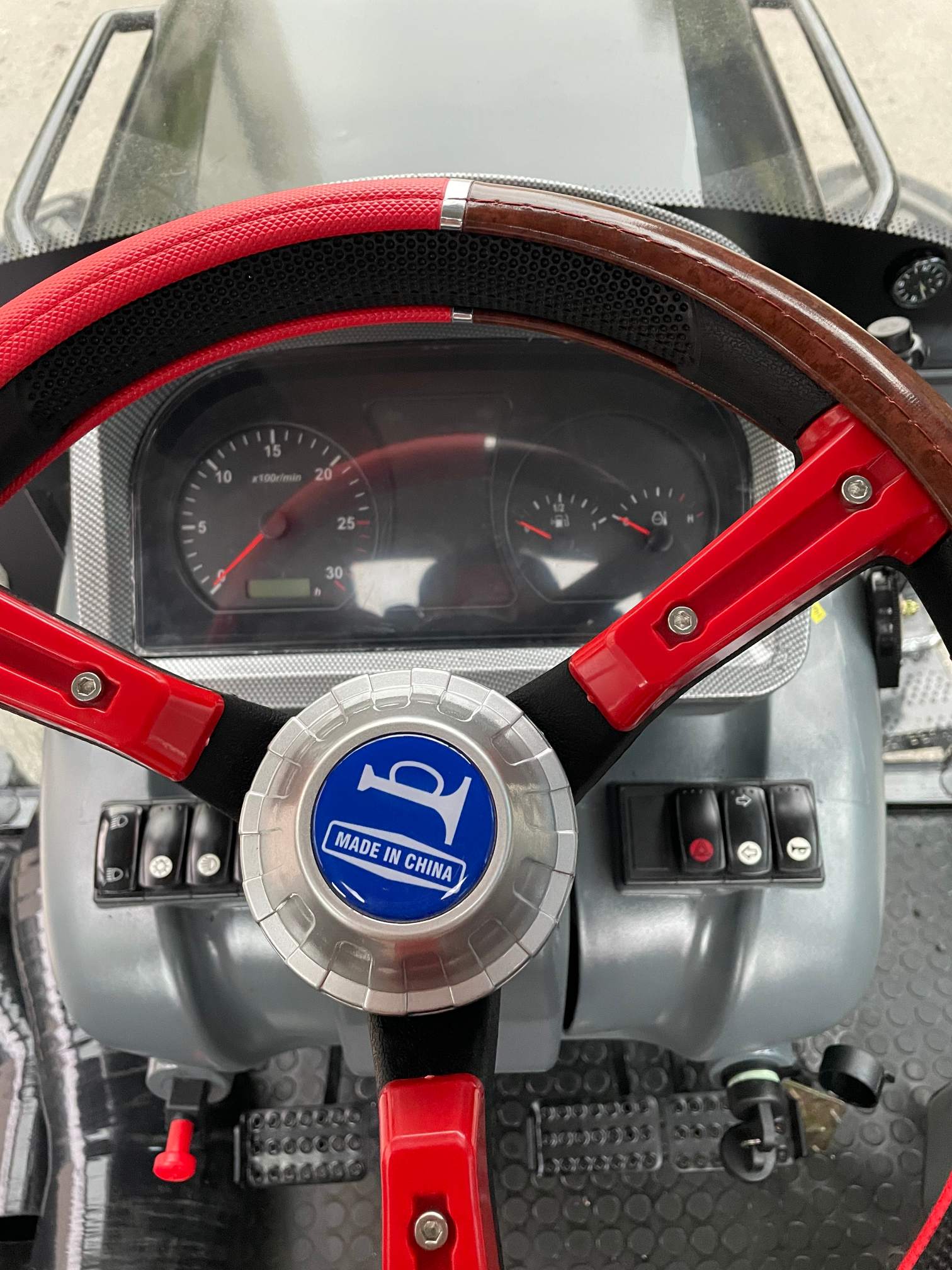

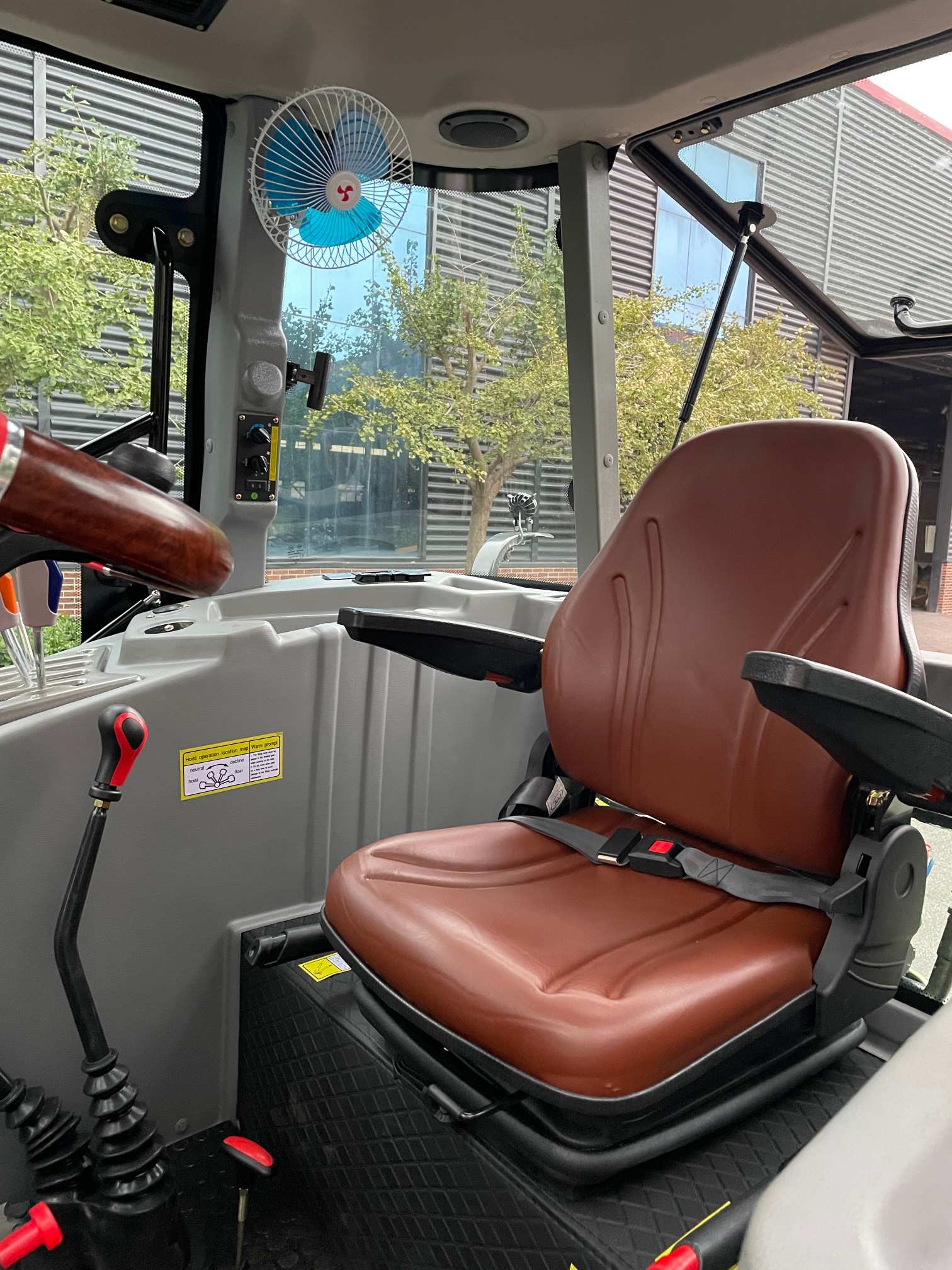

The cab adopts a sealed noise reduction design, equipped with optimized shock-absorbing seats, adjustable lumbar and backrest angles, and alleviates long-term driving fatigue. Equipped with a standard four-way imaging system and high-definition instrument panel, covering 360 ° blind spots during operation, key data is clear at a glance. It is also equipped with a sound system, sunroof, dual fans, and USB fast charging interface, with optional air conditioning for a more comfortable driving experience.
An optional integrated Beidou+GPS dual-mode positioning system can be used to accurately record the operating area and trajectory, support route planning and deviation warning, and assist in precision agriculture operations. The whole machine has strong adaptability and is an ideal equipment for large-scale planting.
Product parameters:
| Model | Product Name | Specification |
| CL1004-TD | 100HP 4WD Farm Tractor with Cabin Color Black CL1004-TD | 1. Whole machine weight: 4870 kg 2. Length x width x height (mm): 5000× 2190 × 2920 3. Ground clearance (mm): 450 (bottom of front axle) 4. Wheelbase (mm): 2520 5. Gear Shift Type(front/rear):: 16/8 6. Spline of power output shaft: 8 keys 7. PTO Shaft Speed: 760/850 revolutions per minute 8. Front tires: 14.9-24 9. Rear tires: 18.4-34 10. Common wheel track (front/rear) 1700/1700 11. Weight: 240/160 12. Supporting power: 73.5kW 13. Drive mode: four-wheel drive 14. Maximum traction force ≥ 35.8kN |
Product details:
1. Beautiful Tractor Body
The overall height of the rear seat has been increased, making the lifting field wider and without dead corners. Galvanized and reinforced suspension ensures more reliable use and prevents damage after use rust, buckles and rings can be easily loaded and unloaded.
2. Brand-name Rubber Tires
The tires are wide, anti-slip, and wear-resistant. They are suitable for various complex road conditions and have good grip.
3. The Gears Turn
The tractor is easy to maintain, high transmission efficiency, multi-gear control, and stable quality of multiple transmissions.
4. Power is strong
This tractor has a high-power brand engine, with complete after-sales service, on-site service, and quality assurance.
5. Detachable bumper

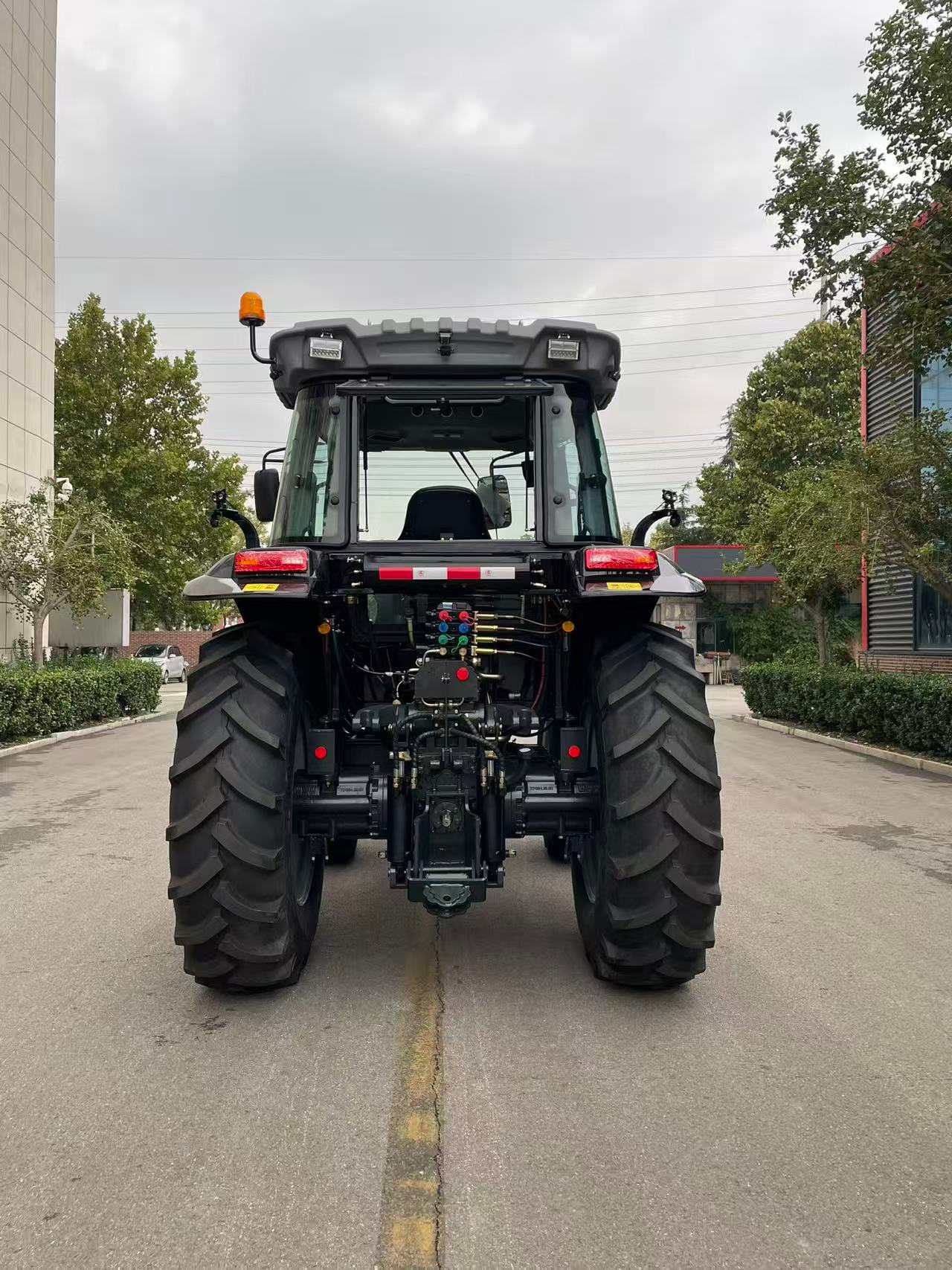

6. Hydraulic suspension center rod
Provide 600-800 kilograms of high tensile force.
7. Other equipment
The tractor is equipped Hanging electric fan, Phone holder, Cup holder, Clothes hanger, LED warning lights, Solar lights, Toolbox, Tripod, etc.

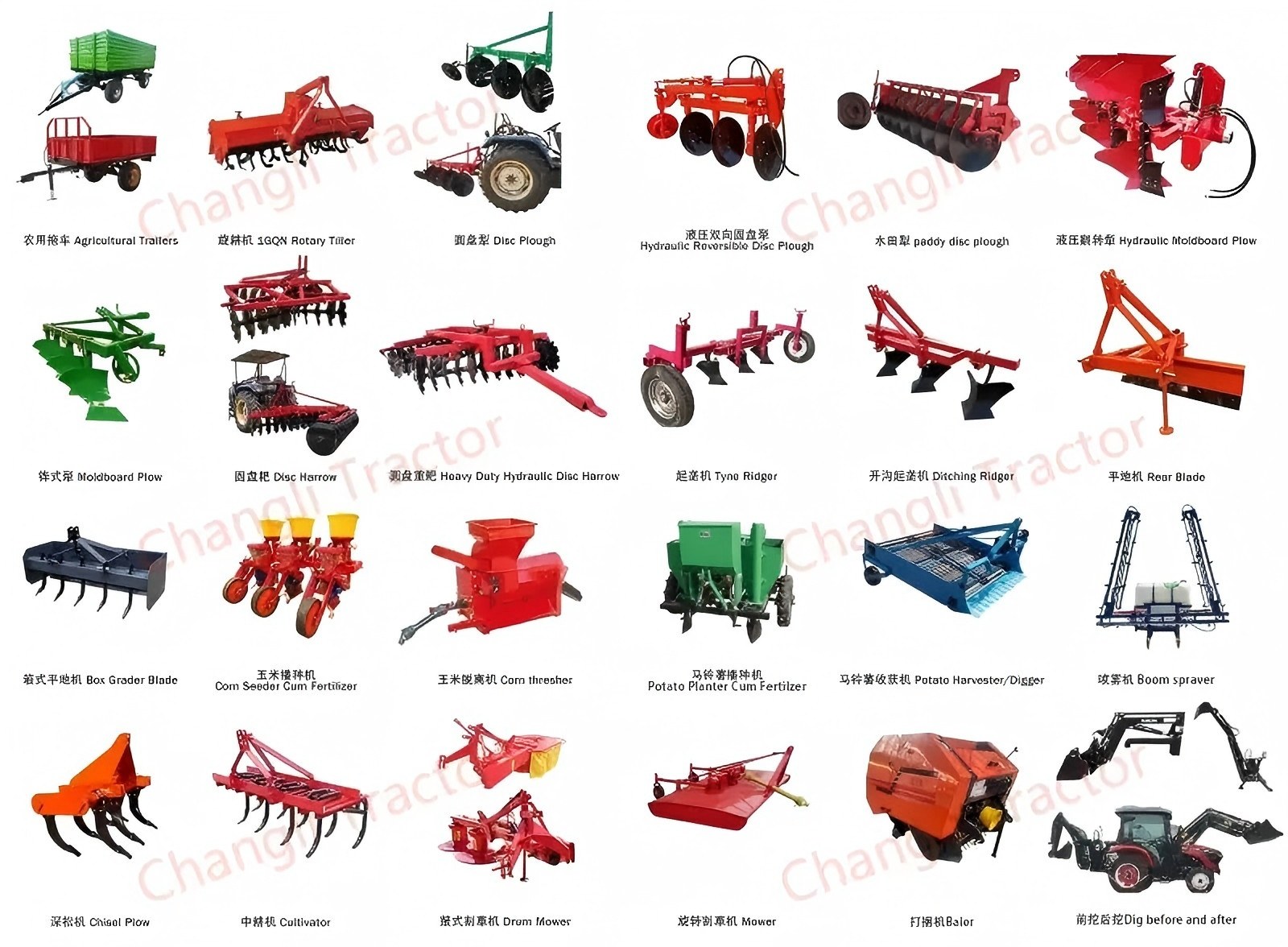

8. Option Agricultural Implements
Company Profile
Changli industry and Trade Co., Ltd., located in Tengzhou City, Shandong Province, was established in 2007, covering an area of more than 58000 square meters. The company has more than 500 employees, including 50 senior engineers and 38 technical managers. Its main products are large and medium-sized wheeled tractors and walking tractors. They are two-wheel drive and four-wheel drive, from 25HP to 220HP. According to the market demand, the company has produced 9 series and more than 70 tractor models. We have 14 registered patents, such as transfer case of medium-sized tractor, integrated flat floor of medium-sized tractor and forced lift of large tractor.
Exhibitions
Packaging & Shipping
Certifications
1. tractors are specially designed for various light-duty operations such as agriculture and transportation.
2. Equipped with Chinese famous brand diesel engine, it has the advantages of cost-effectiveness, high fuel
efficiency, low maintenance cost and good working performance.
3. Using a central console and mature structure, the tractor is easy to control and maintain.
4. 8F+2R /8F+8R/16+8/24+8 gearbox, simple operation and convenient maintenance.
5. Single/double-acting clutches can be selected to meet different needs and operations; Herringbone tires, paddy tires or other types of tires can be selected to meet your working conditions.
6. Hydraulic power steering (2WD/4WD), easy to control, reduce the labor intensity of the operator.
