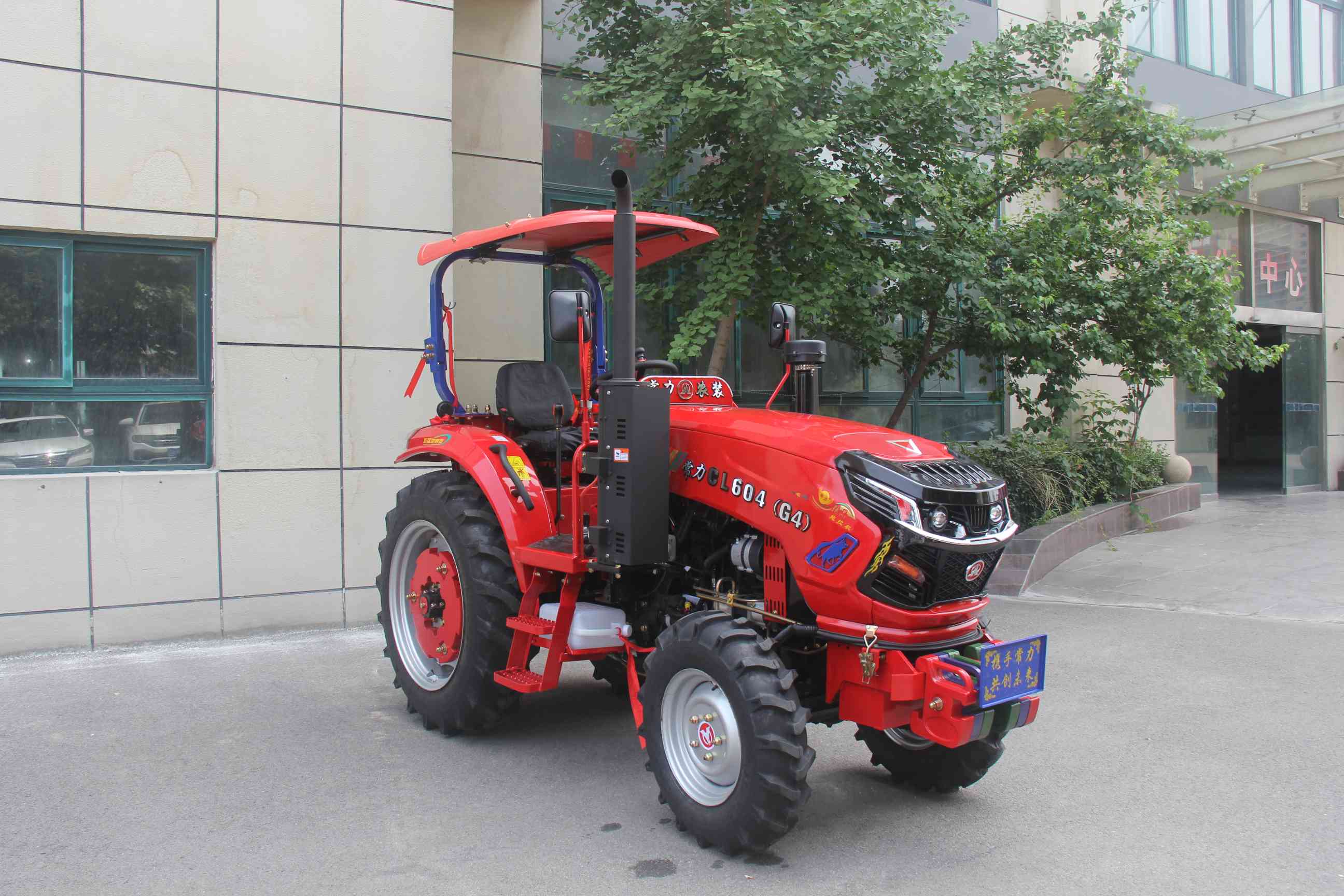

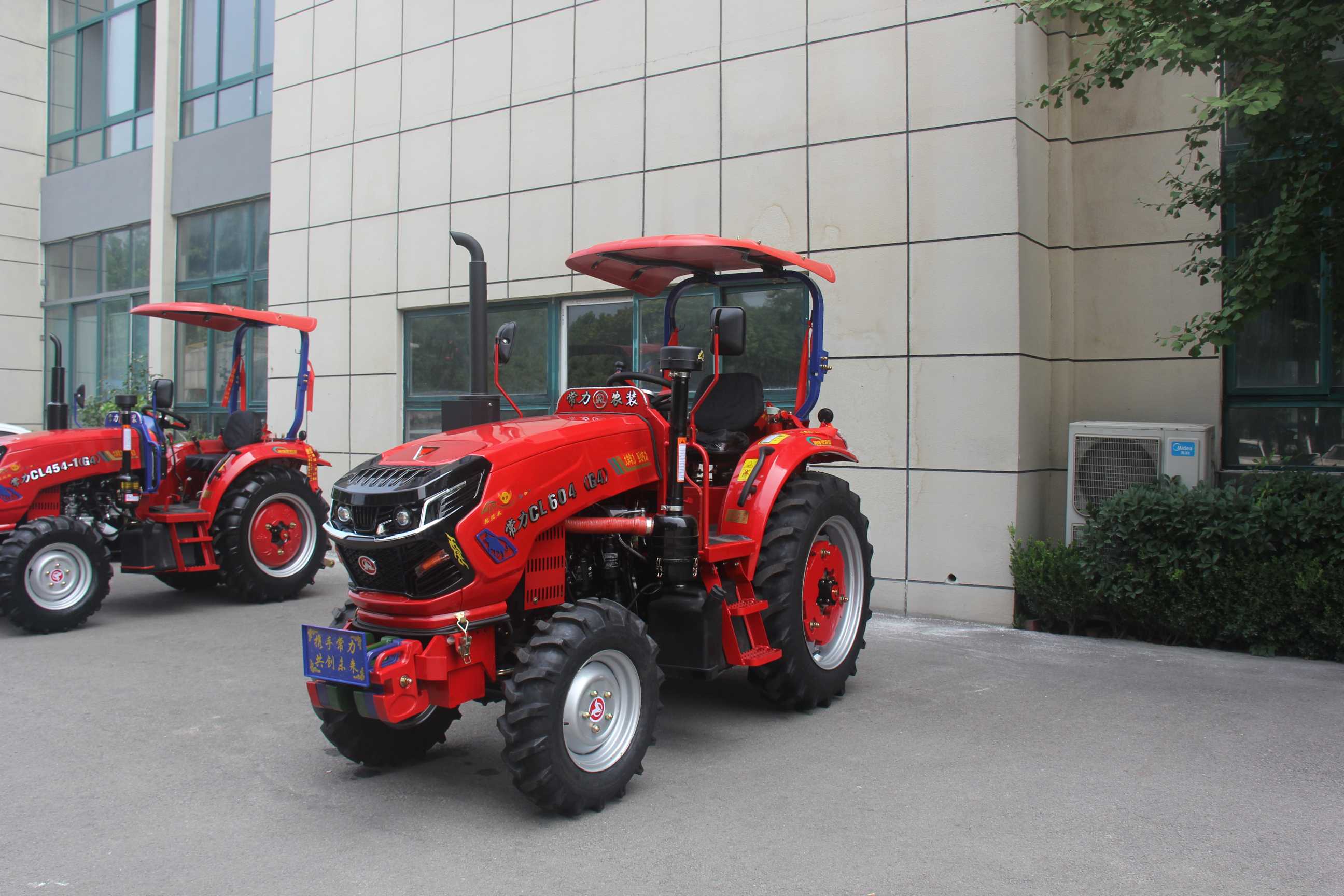

60HP CL604-TE Canopy

A tractor with a sunshade or canopy provides essential protection for the operator, reducing exposure to harsh sunlight and weather conditions. This feature enhances comfort, especially during long hours of work in the field. It also helps maintain focus and productivity by keeping the operator cooler and more shielded from UV rays.

Contact Now E-mail Telephone WhatsApp

Product Details

Product parameters:

Model

Product name

Specification

Constant Force 604 parameters

60HP 4WD Farm Tractor

1. Overall dimensions (length × width × height mm): 3765 × 1550 × 2350 (safety frame frame);

2. Overall weight: 2320 (safety frame) kg;

3. Matching power (kW): 43.7;

4. Type: Four-wheel drive;

5. Wheelbase (mm): 1880;

6. Wheel spacing (front/rear wheels) (mm): 1210, 1440/1100-1250;

7. Minimum ground clearance (mm): 310;

8. PTO speed: 540/720;

9. Number of gears (forward/reverse): 8/2 (optional 8+8 shuttle gears);

10. Transmission type (4+1) × 2 modular;

11. Tire models (front/rear wheels): 7.50-16/11.2-28, optional 8.3-20/12.4-28;

12. HydrauCompany Profilelic oil pump model: CBN-F320;

13. Hydraulic suspension system type: Separate-mounted (strong lift and strong drop)

Product details:

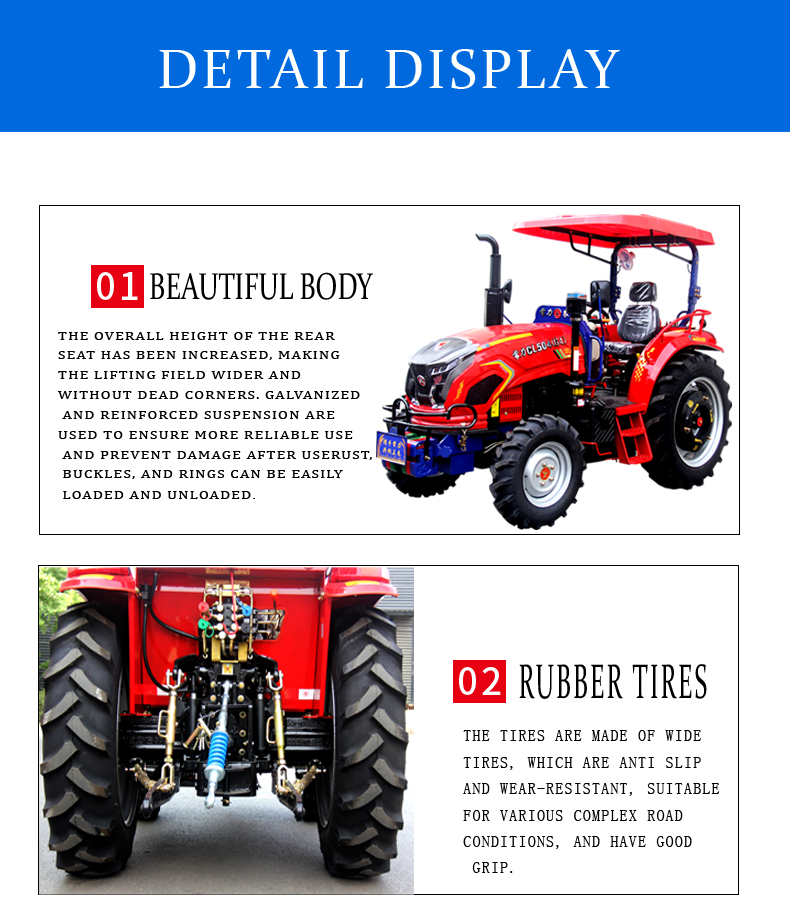

1. Beautiful Tractor Body

The overall height of the rear seat has been increased, making the lifting field wider and without dead corners. Galvanized and reinforced suspension ensures more reliable use and prevents damage after use rust, buckles and rings can be easily loaded and unloaded.

2. Brand-name Rubber Tires

The tires are wide, anti-slip, and wear-resistant. They are suitable for various complex road conditions and have good grip.

3. The Gears Turn

The tractor is easy to maintain, high transmission efficiency, multi-gear control, and stable quality of multiple transmissions.

4. Power is strong

This tractor has a high-power brand engine, with complete after-sales service, on-site service, and quality assurance.

5. Detachable bumper

6. Hydraulic suspension center rod

Provide 600-800 kilograms of high tensile force.

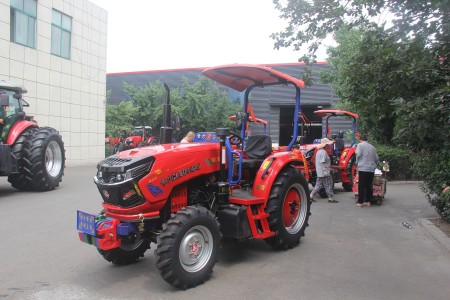

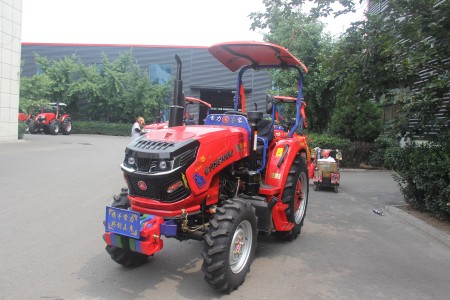

IMG_2785(1).jpg IMG_2786(1).jpg

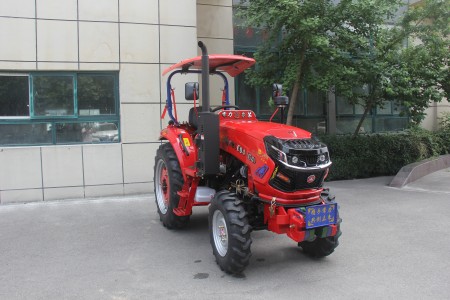

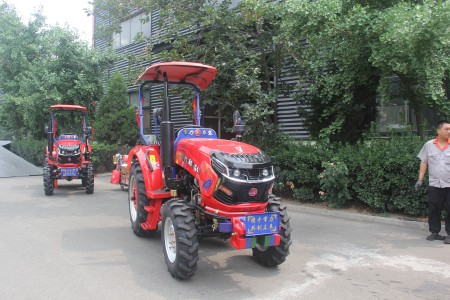

IMG_2788(1).jpg IMG_2836(1).jpg

7. Other equipment

The tractor is equipped Hanging electric fan, Phone holder, Cup holder, Clothes hanger, LED warning lights, Solar lights, Toolbox, Tripod, etc.

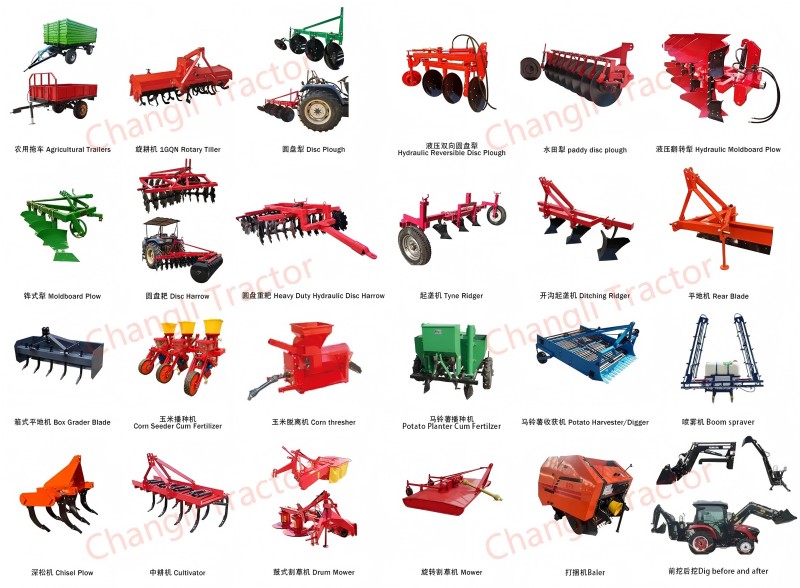

8. Option Agricultural Implements




Company Profile

Company Profile带字第四1微信图片_20240725172530.jpg

Exhibitions

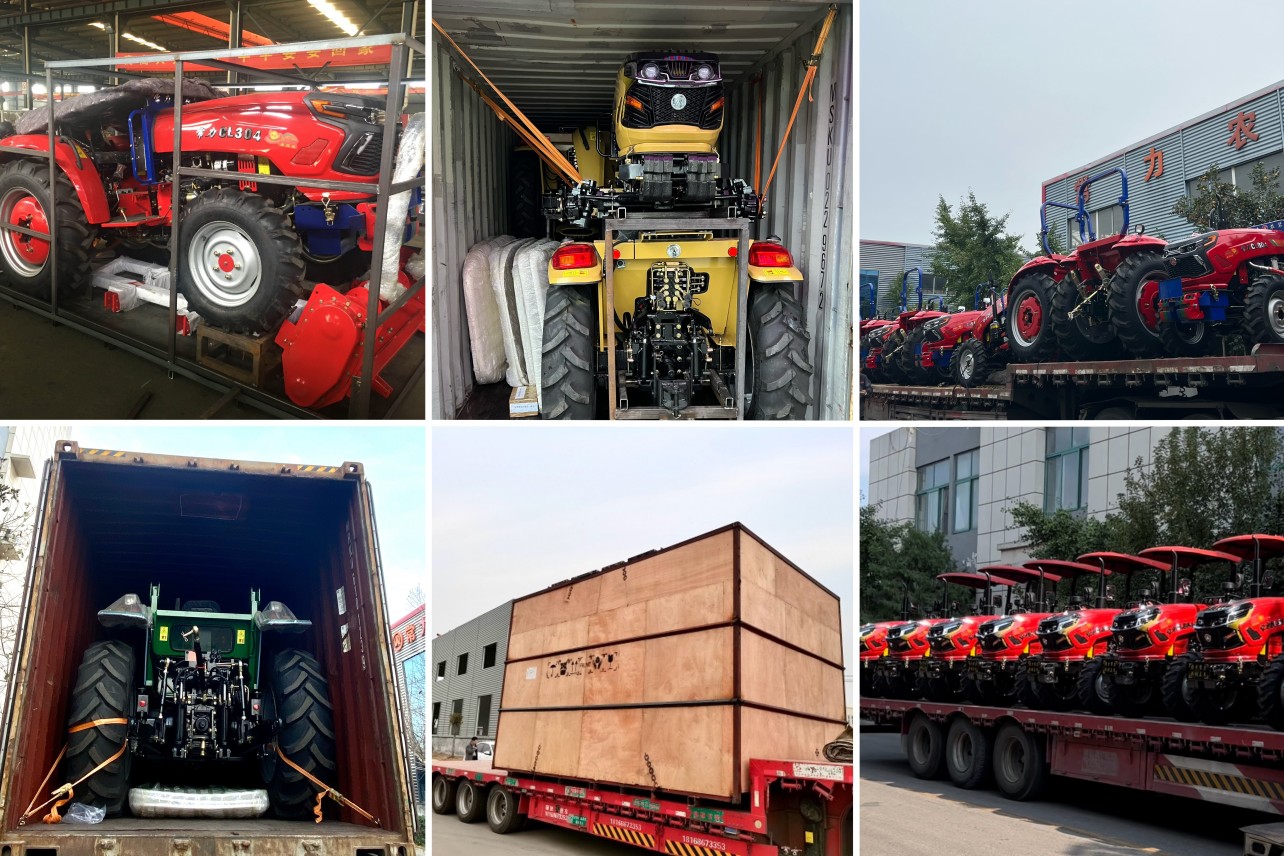

Packaging & Shipping

Packaging & Shipping第六发货压缩(1).jpg

Certifications


1. tractors are specially designed for various light-duty operations such as agriculture and transportation.

2. Equipped with Chinese famous brand diesel engine, it has the advantages of cost-effectiveness, high fuel

efficiency, low maintenance cost and good working performance.

3. Using a central console and mature structure, the tractor is easy to control and maintain.

4. 8F+2R /8F+8R/16+8/24+8 gearbox, simple operation and convenient maintenance.

5. Single/double-acting clutches can be selected to meet different needs and operations; Herringbone tires, paddy tires or other types of tires can be selected to meet your working conditions.

6. Hydraulic power steering (2WD/4WD), easy to control, reduce the labor intensity of the operator.
