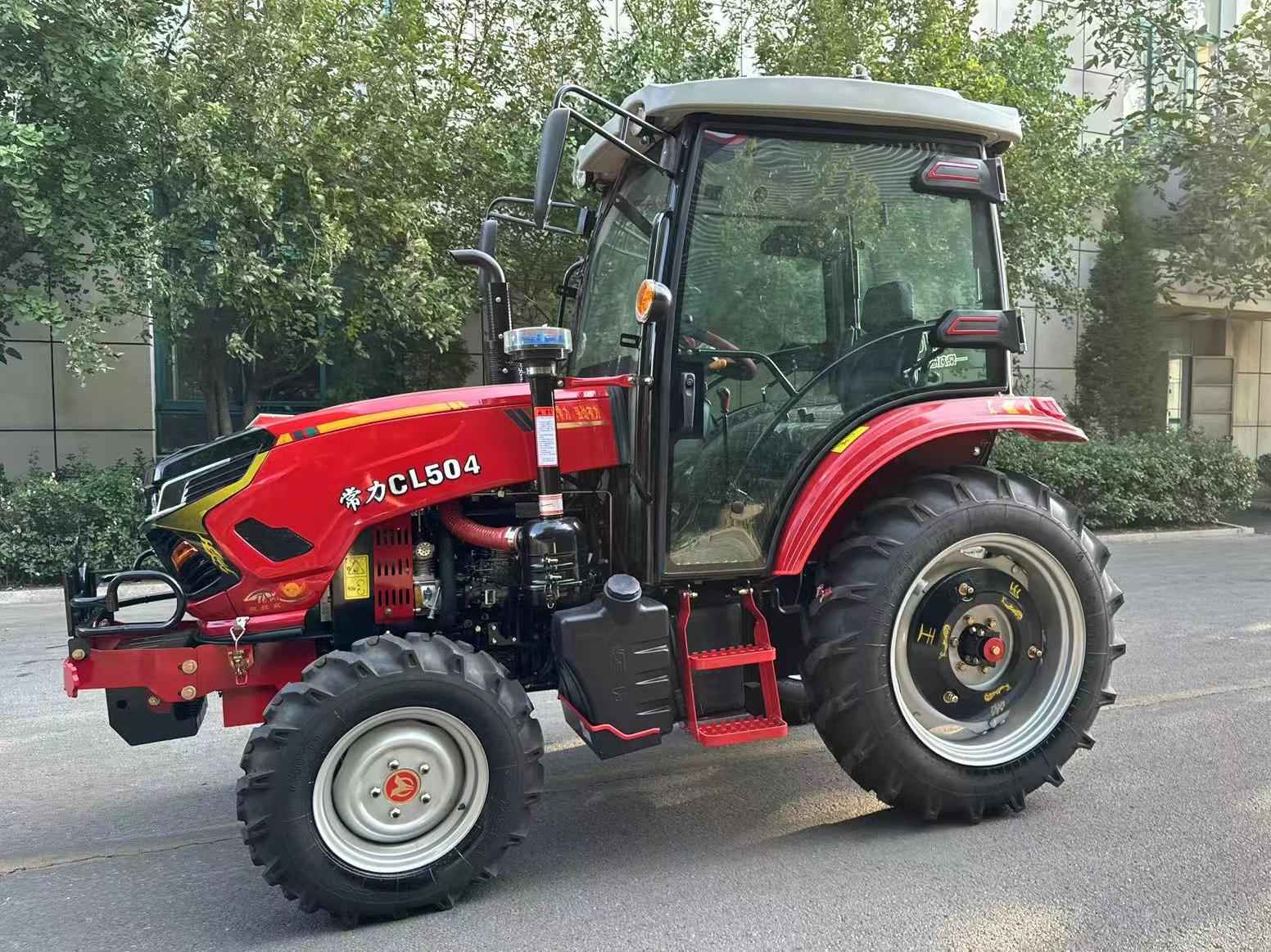

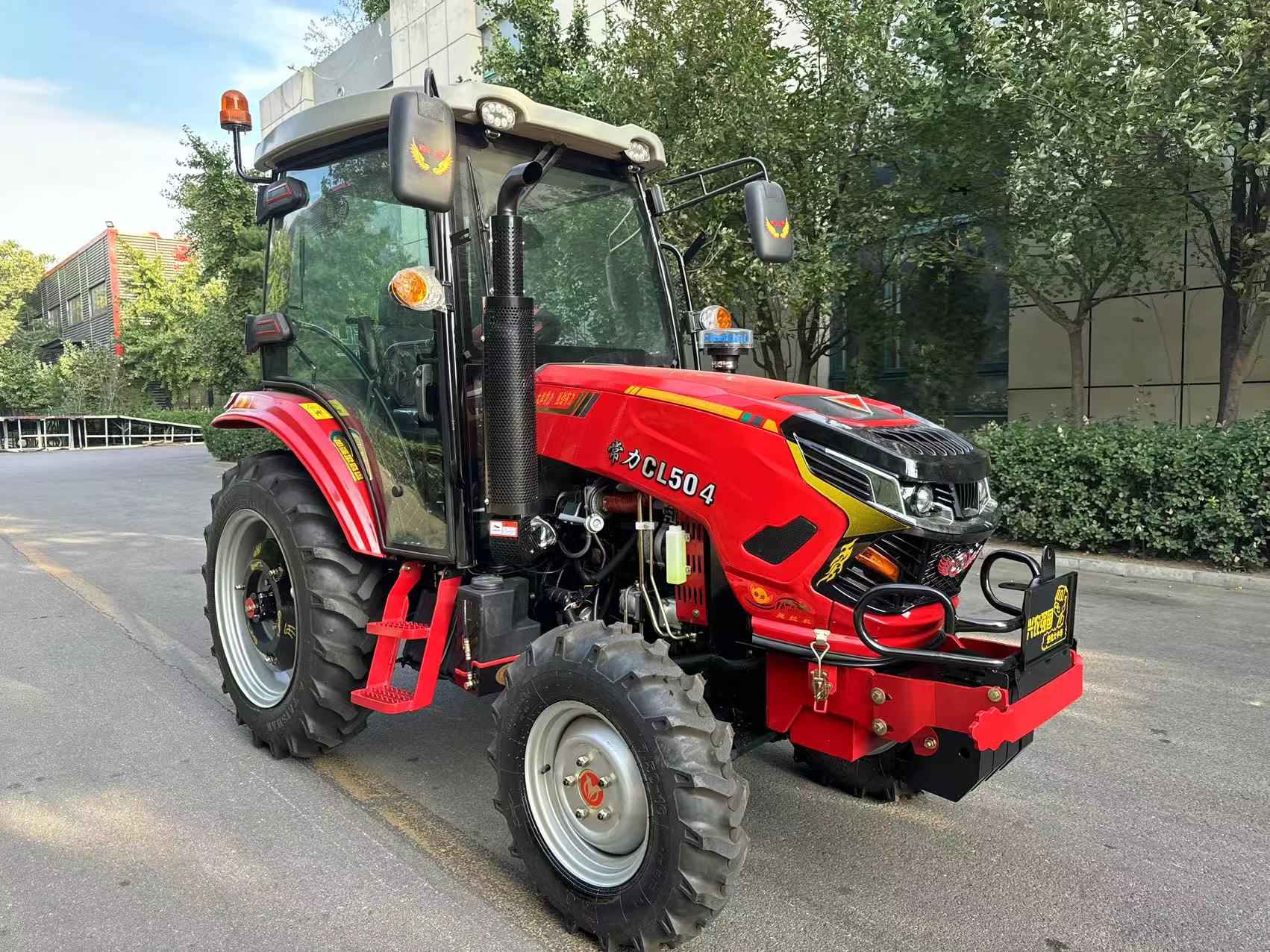

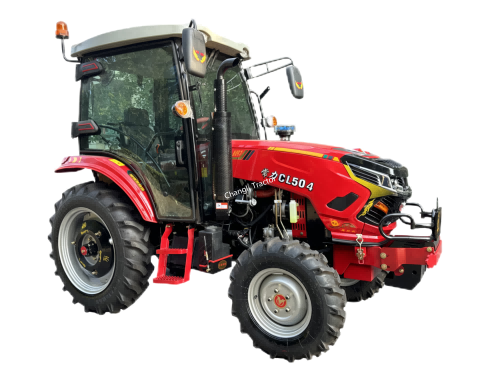

50HP CL504-TY Cabin
All-Weather Comfort: The canopy and integrated fan protect operators from sun/rain, while ergonomic design minimizes fatigue during long shifts.
Smart Convenience: Features like USB ports, phone mounts, cup holders, and solar-powered LED lights enhance efficiency and connectivity during fieldwork.
Durability & Versatility: Robust build handles heavy-duty tasks (plowing, hauling) across diverse terrains, supported by reliable lighting for night operations.
Product parameters:
Model | Product name | Specification |
CL504 Cab Parameters | 50HP 4WD Farm Tractor | 1. Overall dimensions (length × width × height mm): 3600 × 1500 × 2100 (safety frame), 3600 × 1500 × 2300 (driver's cab); 2. Overall weight: 1672 (safety frame), 1812 (driver's cab) kg; 3. Matching power (kW): 36.8; 4. Type: Four-wheel drive; 5. Wheelbase (mm): 1835; 6. Wheel spacing (front/rear wheels) (mm): 1100, 1200, 1300/1060 - 1200; 7. Minimum ground clearance (mm): 320; 8. PTO speed: 540/720; 9. Number of gears (forward/reverse): 8/2 (optional 8+8 gears); 10. Transmission type: (4+1) × 2 modular 11. Tire model (front/rear wheels): 7.50-16/11.2-24. 12. Hydraulic oil pump model: CBN-F316; Hydraulic suspension system type: Separate-mounted (strong lift and strong drop) |
Product details:

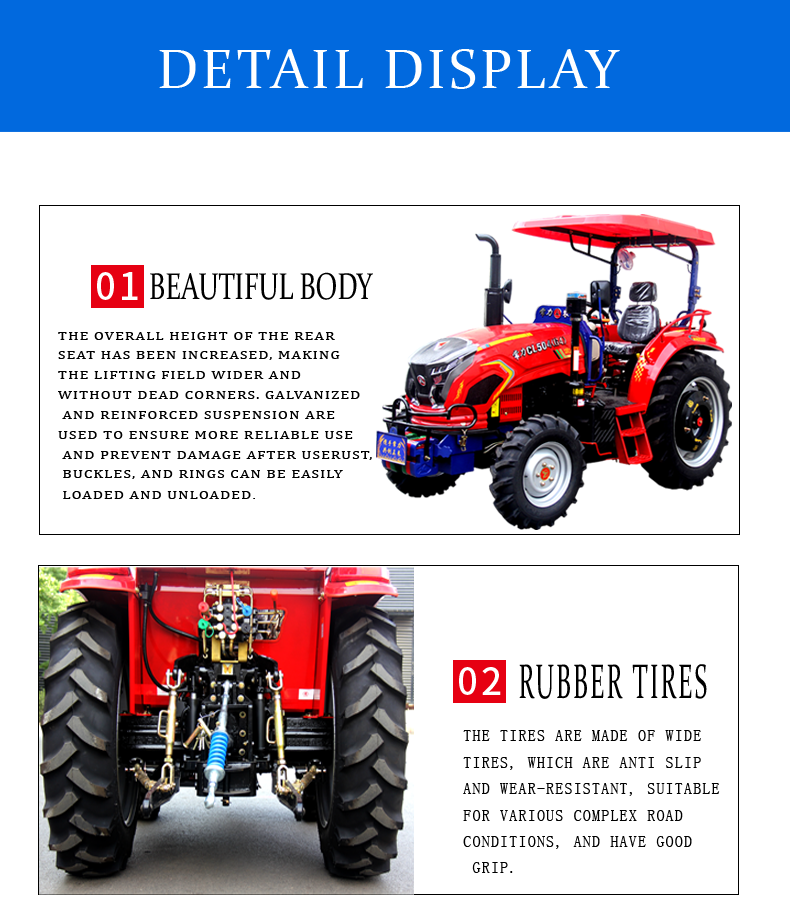

1. Beautiful Tractor Body
The overall height of the rear seat has been increased, making the lifting field wider and without dead corners. Galvanized and reinforced suspension ensures more reliable use and prevents damage after use rust, buckles and rings can be easily loaded and unloaded.
2. Brand-name Rubber Tires
The tires are wide, anti-slip, and wear-resistant. They are suitable for various complex road conditions and have good grip.
3. The Gears Turn
The tractor is easy to maintain, high transmission efficiency, multi-gear control, and stable quality of multiple transmissions.

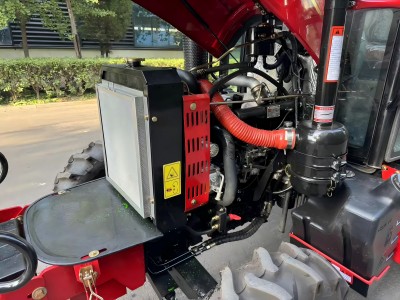

4. Power is strong
This tractor has a high-power brand engine, with complete after-sales service, on-site service, and quality assurance.

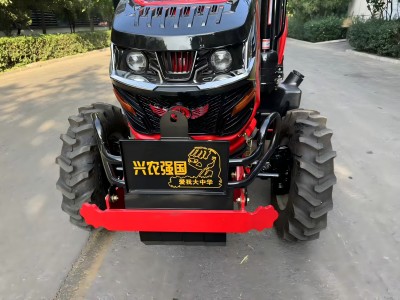

5. Detachable bumper
6. Hydraulic suspension center rod
Provide 600-800 kilograms of high tensile force.
7. Other equipment
The tractor is equipped Hanging electric fan, Phone holder, Cup holder, Clothes hanger, LED warning lights, Solar lights, Toolbox, Tripod, etc.

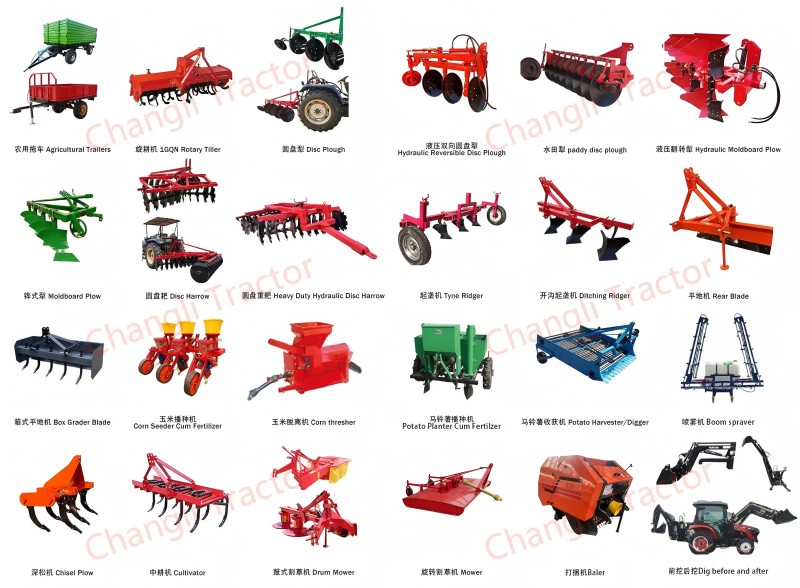

8. Option Agricultural Implements

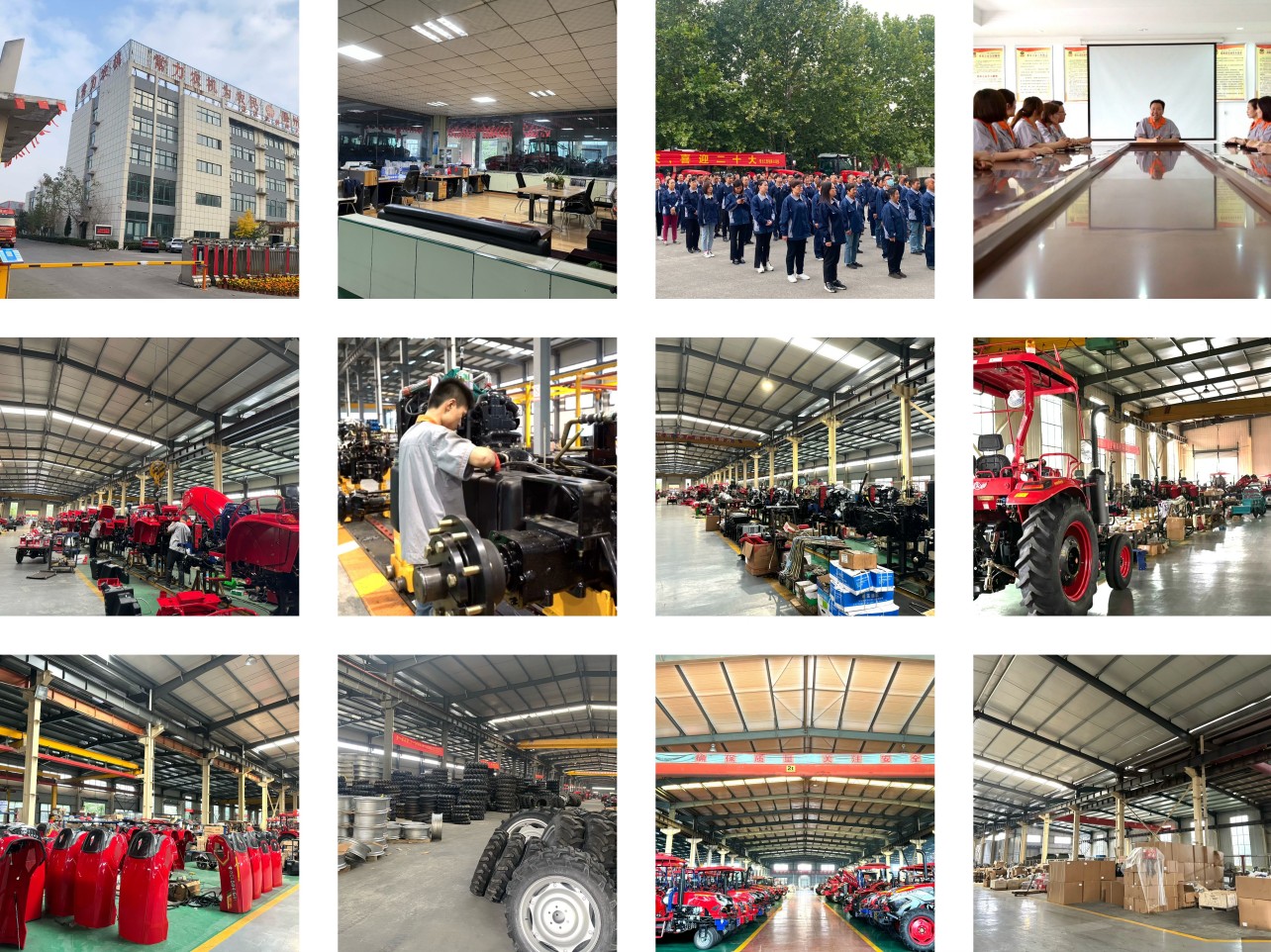

Changli industry and Trade Co., Ltd., located in Tengzhou City, Shandong Province, was established in 2007, covering an area of more than 58000 square meters. The company has more than 500 employees, including 50 senior engineers and 38 technical managers. Its main products are large and medium-sized wheeled tractors and walking tractors. They are two-wheel drive and four-wheel drive, from 25HP to 220HP. According to the market demand, the company has produced 9 series and more than 70 tractor models. We have 14 registered patents, such as transfer case of medium-sized tractor, integrated flat floor of medium-sized tractor and forced lift of large tractor.
1. tractors are specially designed for various light-duty operations such as agriculture and transportation.
2. Equipped with Chinese famous brand diesel engine, it has the advantages of cost-effectiveness, high fuel
efficiency, low maintenance cost and good working performance.
3. Using a central console and mature structure, the tractor is easy to control and maintain.
4. 8F+2R /8F+8R/16+8/24+8 gearbox, simple operation and convenient maintenance.
5. Single/double-acting clutches can be selected to meet different needs and operations; Herringbone tires, paddy tires or other types of tires can be selected to meet your working conditions.
6. Hydraulic power steering (2WD/4WD), easy to control, reduce the labor intensity of the operator.
