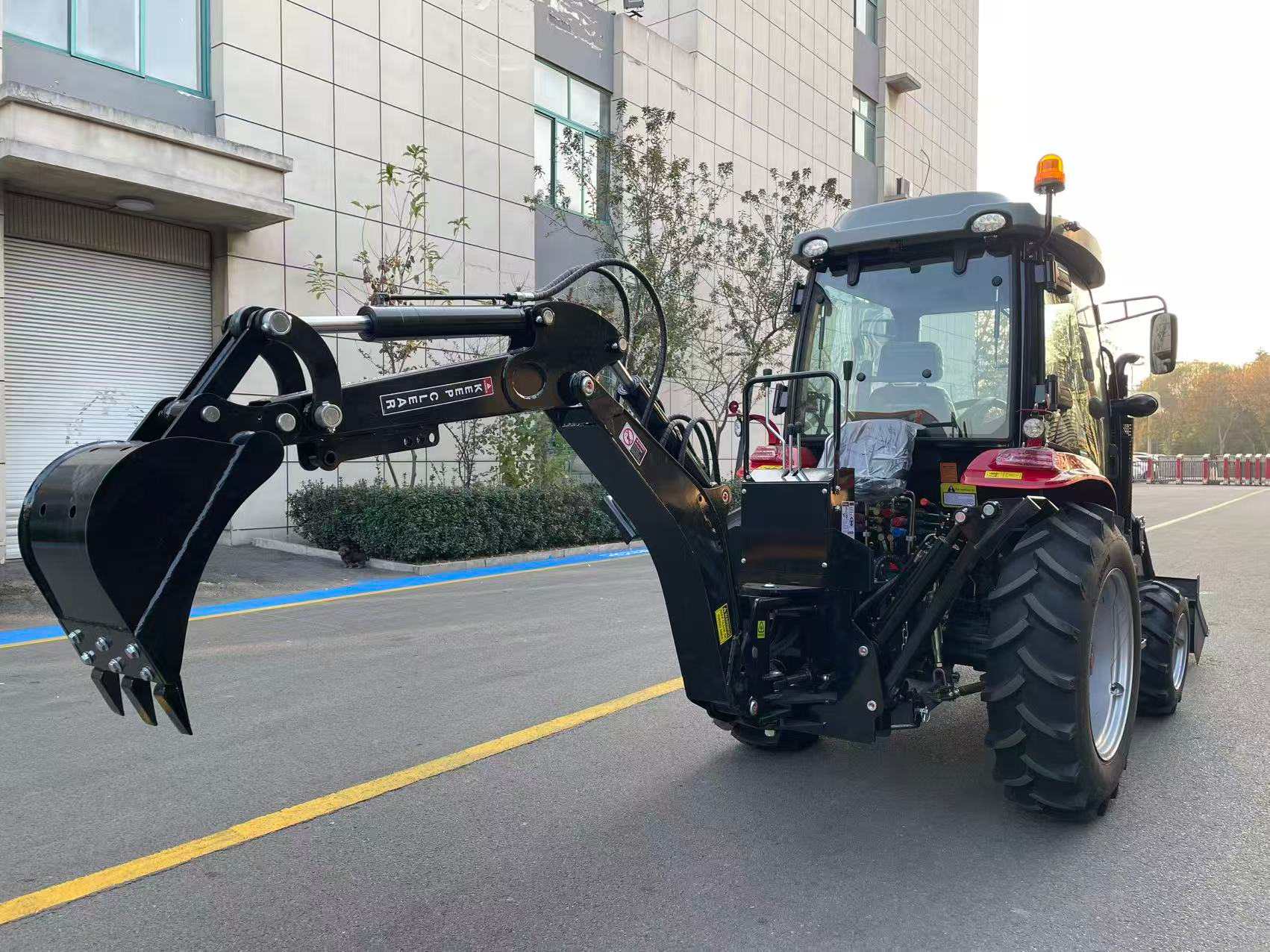

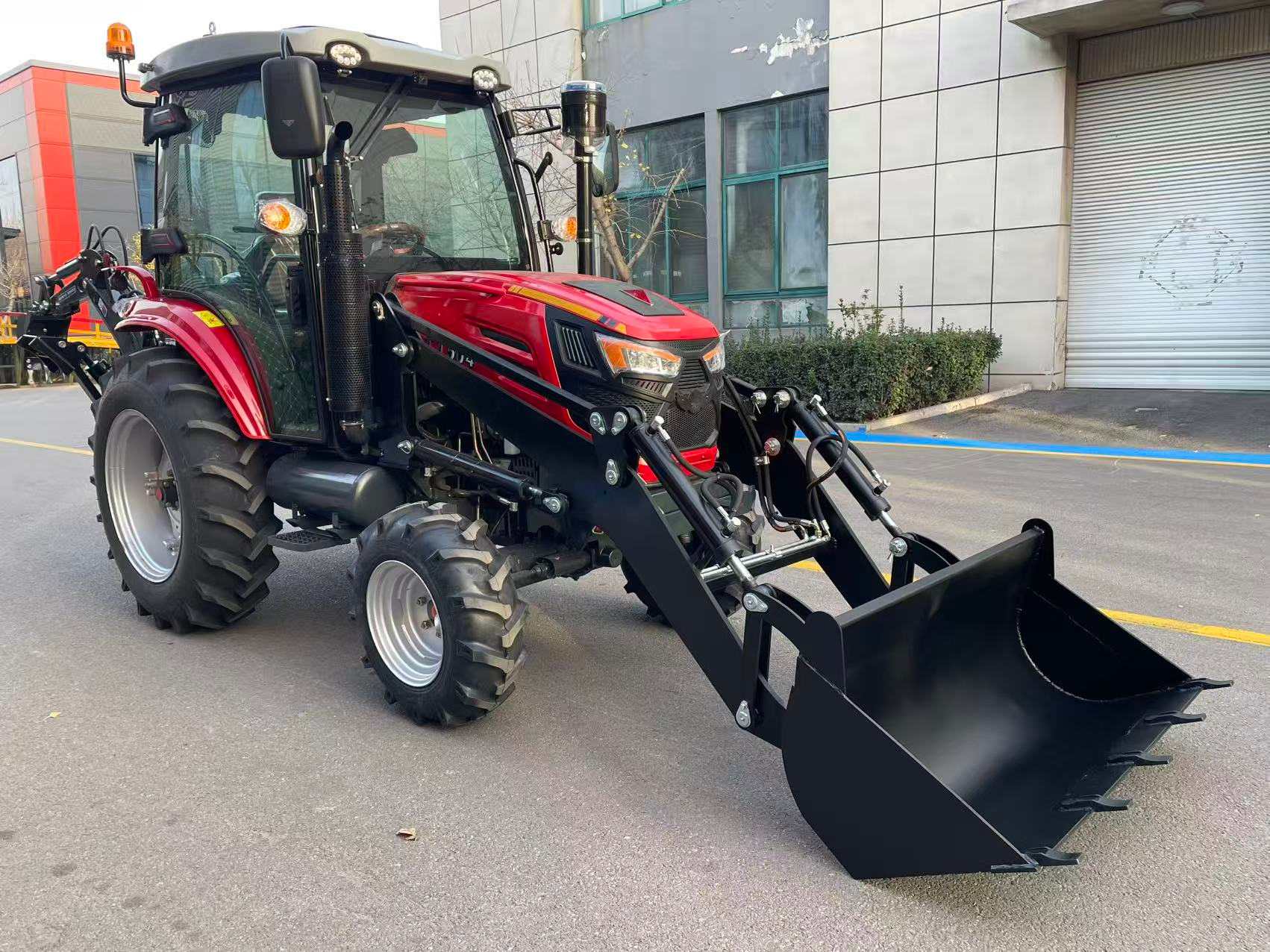

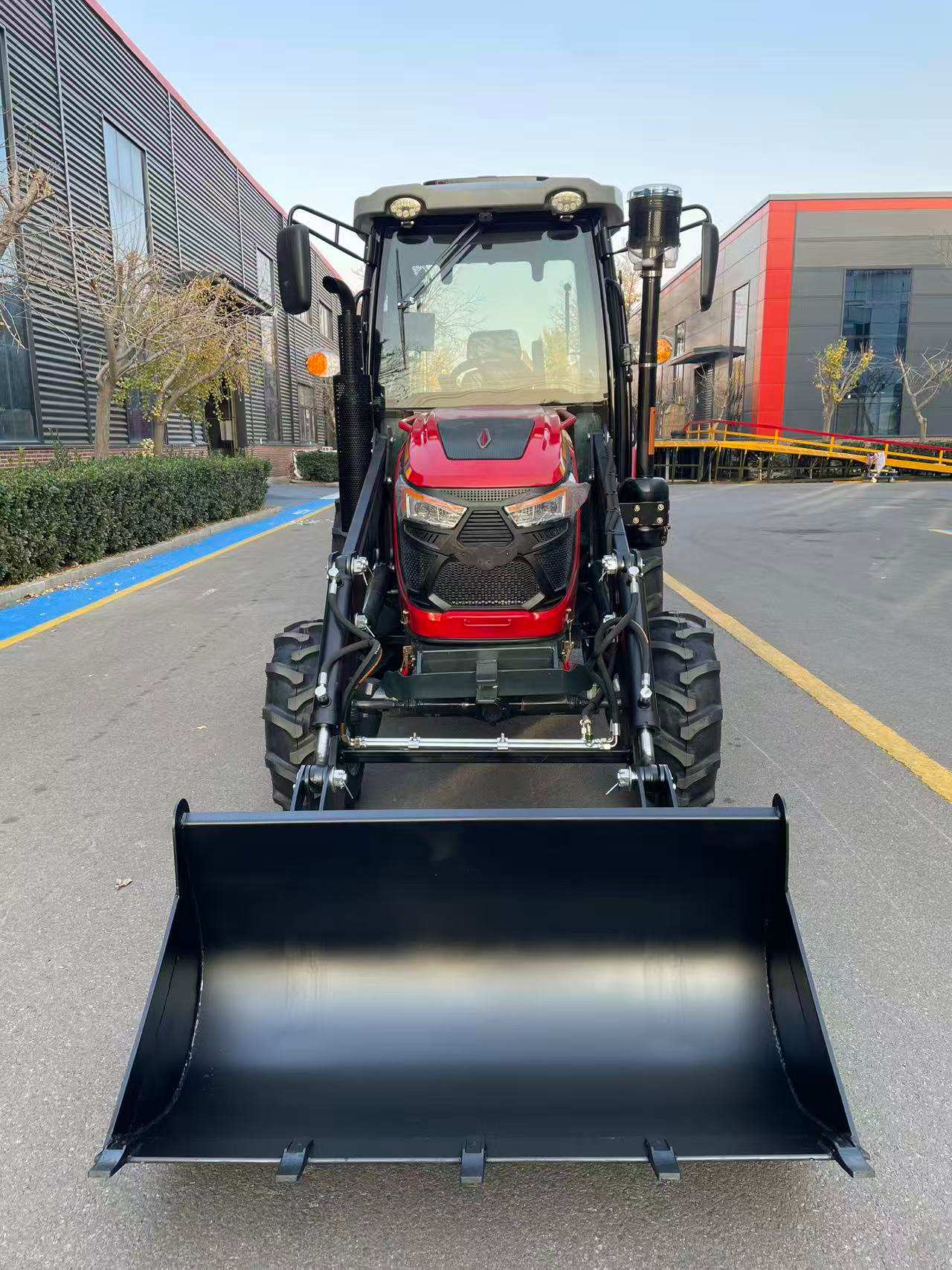

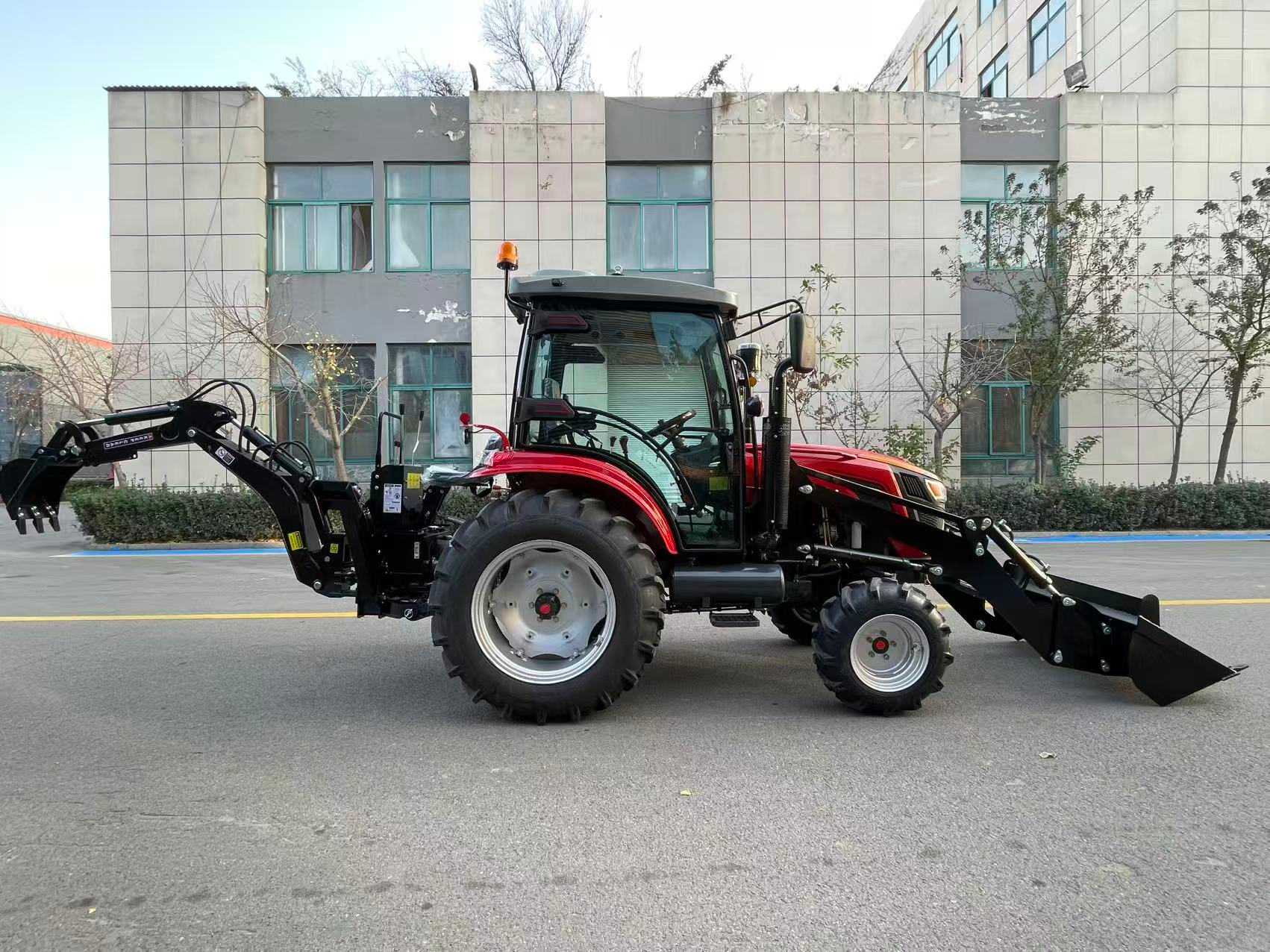

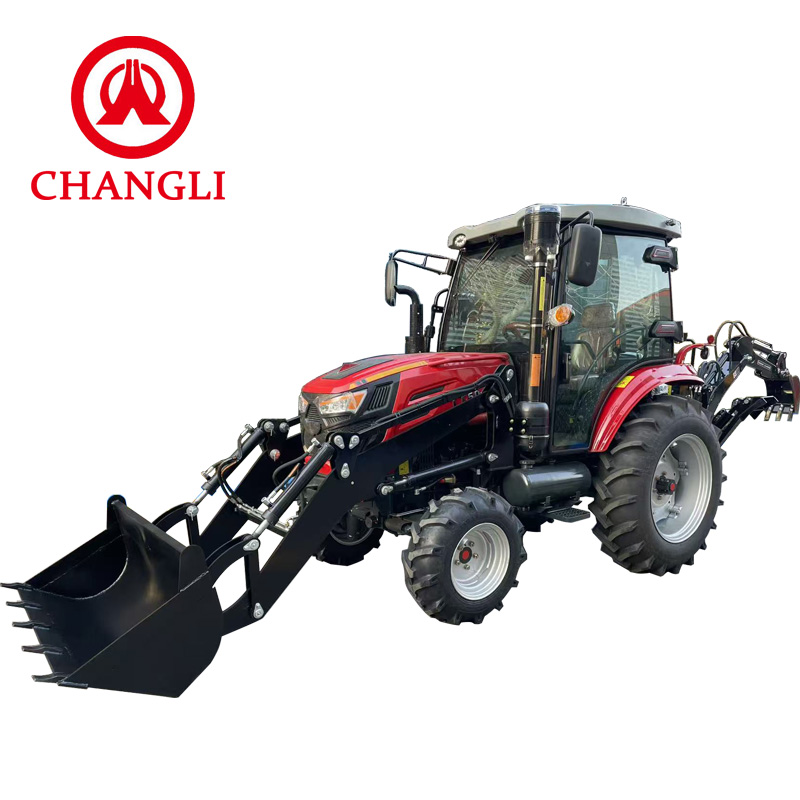

50HP Cab CL504-TE with Optional Front Bucket and Rear Excavation
50 Horsepower Golden Power: Balancing power output and fuel economy, it not only meets the needs of conventional farming such as farmland tillage, straw returning, and orchard management, but also supports heavy-duty operations of front loading and rear digging devices. It does not cause power waste due to "small horses pulling large vehicles" or "large horses pulling small vehicles", and is suitable for various use scenarios such as retail investors, family farms, and small engineering teams.
Durability and Versatility: The rugged structure handles heavy tasks (plowing, hauling) in a variety of terrains and is equipped with reliable night lighting.
Humanized Details: The cabin is equipped with storage compartments and cup holders, allowing for easy placement of tools and drinking water during work; The dashboard data is clear, and fuel consumption, speed, and fault prompts are clear at a glance, making it convenient to grasp the equipment status in real time.
Equipped with Cab, Comfortable and Safe：Sound insulation and shock absorption design, ergonomic design can minimize fatigue during long shifts.

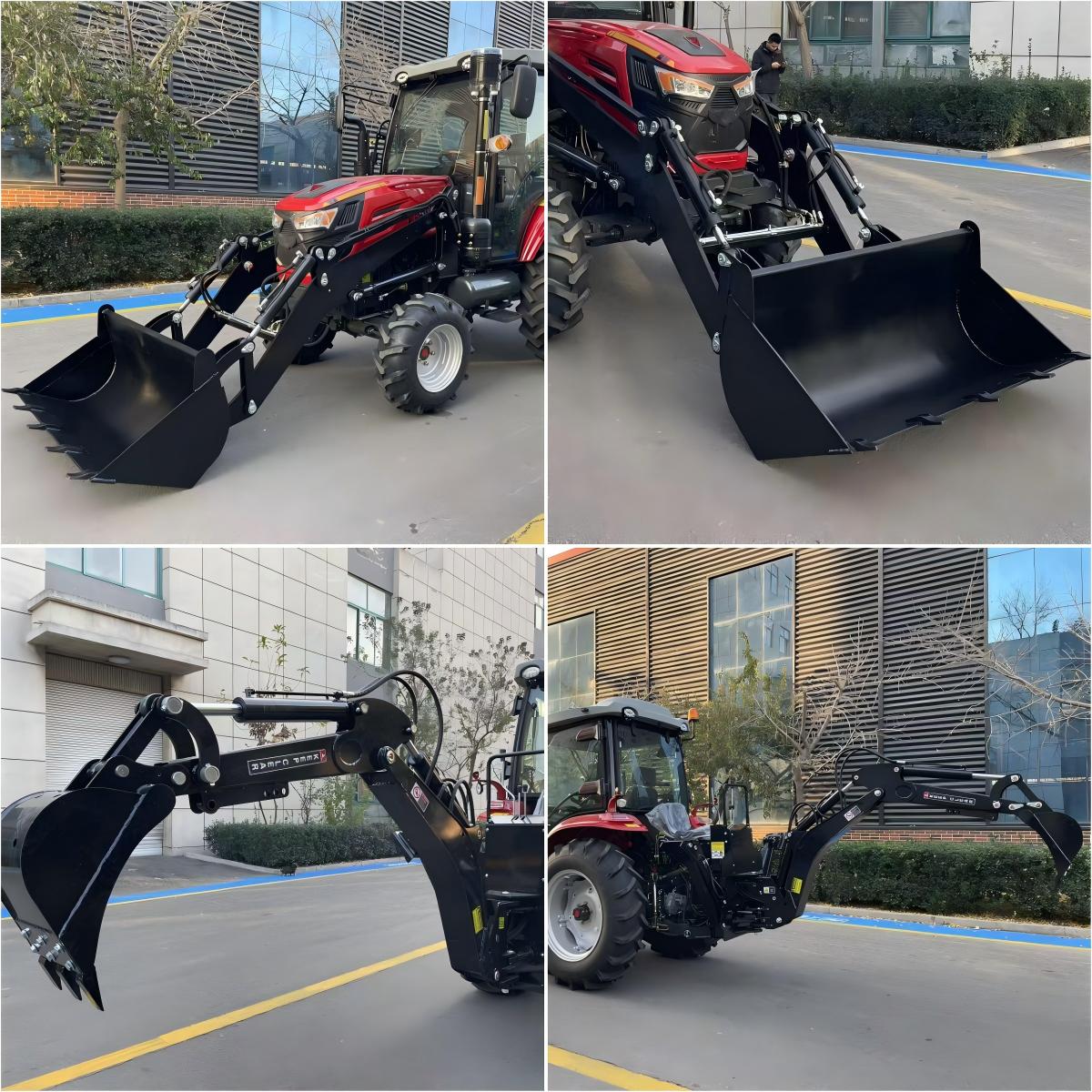

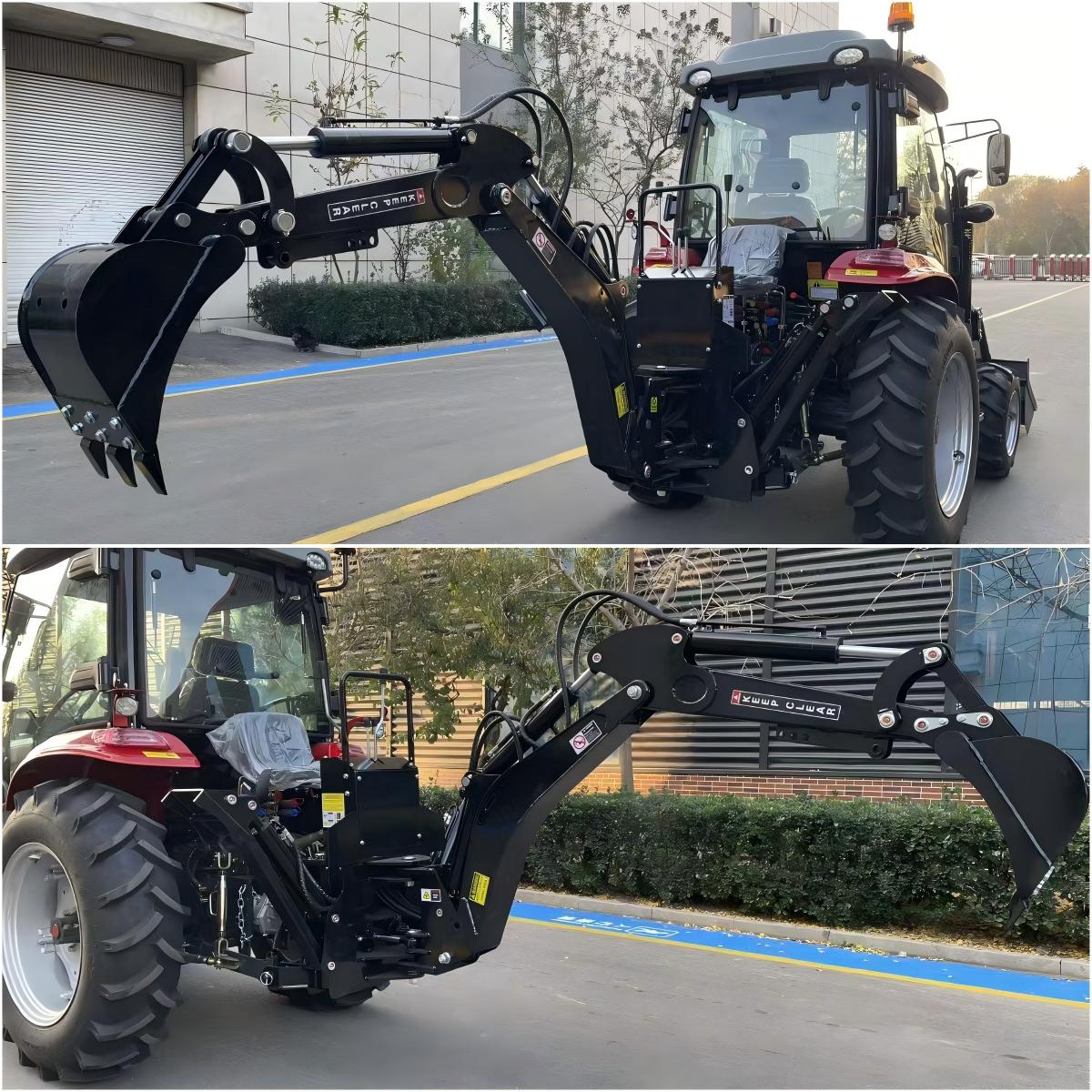

Multi Working Condition Power Regulation: optional front shovel and rear excavation, equipped with a dedicated power regulation system. When switching between front shovel transportation, rear excavation and conventional traction operations, the power distribution is intelligently adapted, and the operating efficiency is improved by more than 20%, avoiding the problem of excessive/insufficient power in a single working condition.
Product parameters:
| Model | Product name | Specification |
| CL504-TE | 50HP 4WD Farm Tractor CL504-TE with Optional Front Bucket and Rear Excavation | 1. Overall dimensions (length × width × height mm): 3600 × 1500 × 2300 2. Overall weight: 1812kg; 3. Matching power (kW): 36.8; 4. Type: Four-wheel drive; 5. Wheelbase (mm): 1835; 6. Wheel spacing (front/rear wheels) (mm): 1100, 1200, 1300/1060 - 1200; 7. Minimum ground clearance (mm): 320; 8. PTO speed: 540/720; 9. Number of gears (forward/reverse): 8F/2R (optional 8+8 gears); 10. Transmission type: (4+1) × 2 modular 11. Tire model (front/rear wheels): 7.50-16/11.2-24. 12. Hydraulic oil pump model: CBN-F316; Hydraulic suspension system type: Separate-mounted (strong lift and strong drop) |
Product details:

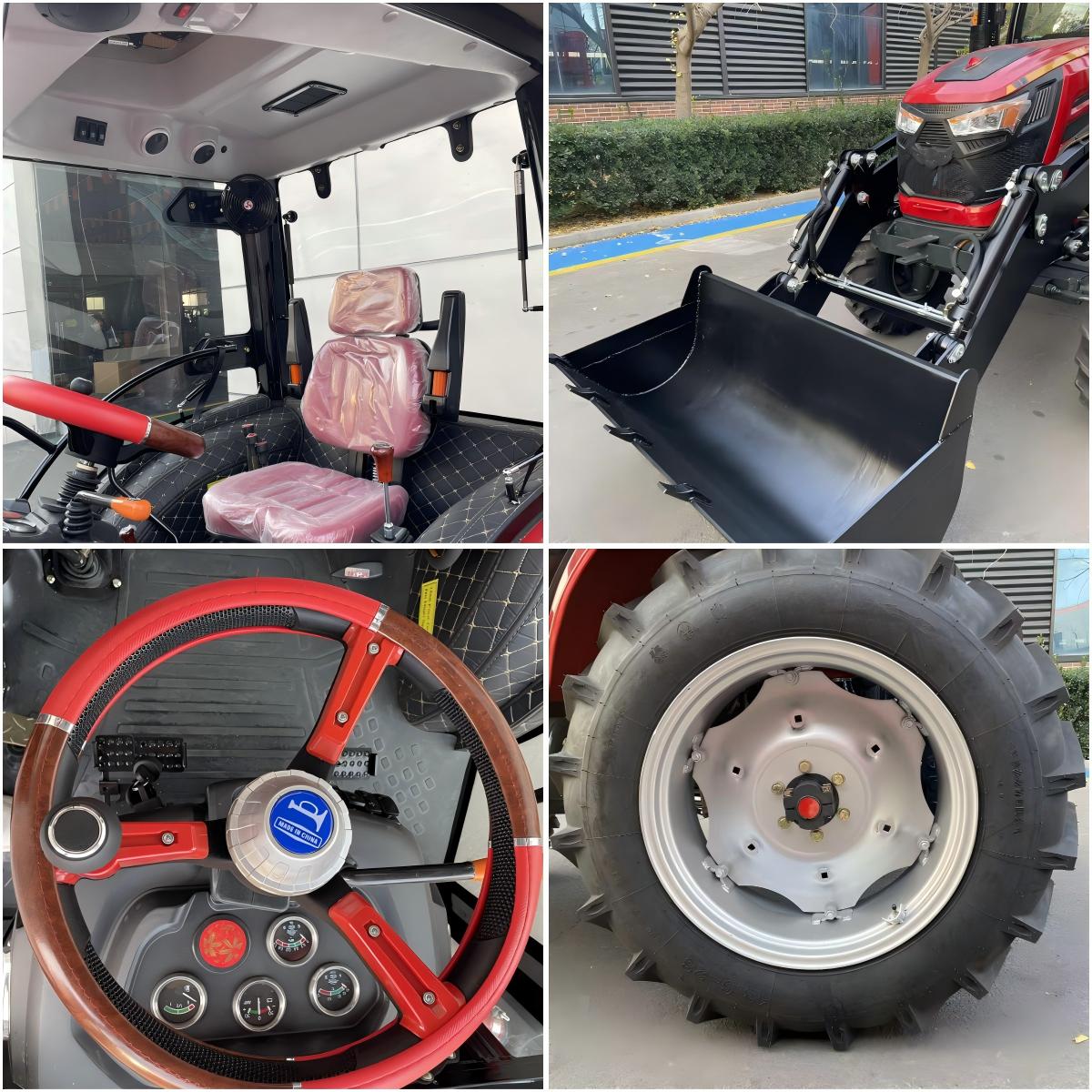

1. Beautiful Tractor Body
The overall height of the rear seat has been increased, making the lifting field wider and without dead corners. Galvanized and reinforced suspension ensures more reliable use and prevents damage after use rust, buckles and rings can be easily loaded and unloaded.
2. Brand-name Rubber Tires
The tires are wide, anti-slip, and wear-resistant. They are suitable for various complex road conditions and have good grip.
3. The Gears Turn
The tractor is easy to maintain, high transmission efficiency, multi-gear control, and stable quality of multiple transmissions.
4. Power is strong
This tractor has a high-power brand engine, with complete after-sales service, on-site service, and quality assurance.
5. Detachable bumper
6. Hydraulic suspension center rod
Provide 600-800 kilograms of high tensile force.
7. Other equipment
The tractor is equipped Hanging electric fan, Phone holder, Cup holder, Clothes hanger, LED warning lights, Solar lights, Toolbox, Tripod, etc.

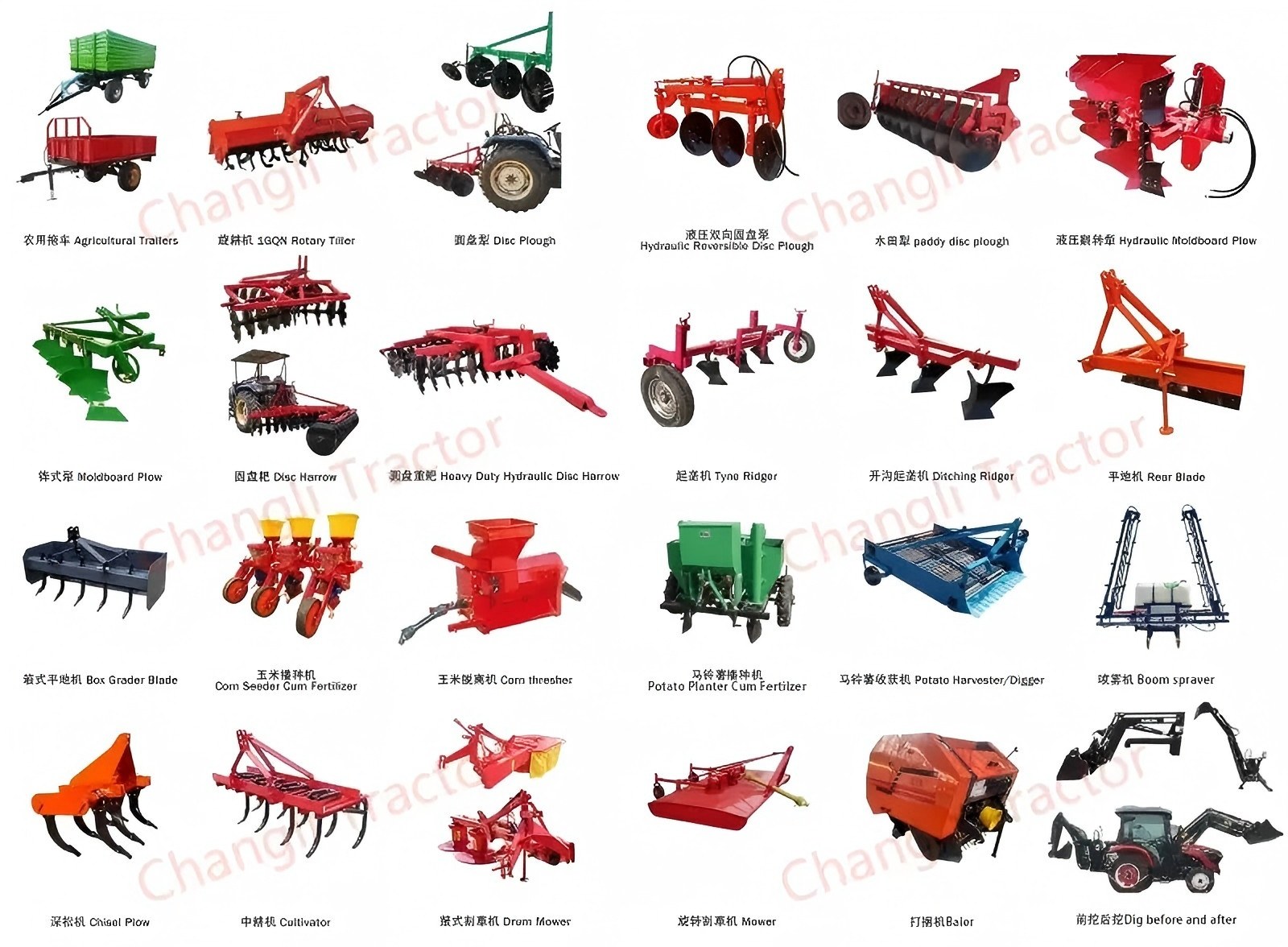

8. Option Agricultural Implements
Company Profile
Changli industry and Trade Co., Ltd., located in Tengzhou City, Shandong Province, was established in 2007, covering an area of more than 58000 square meters. The company has more than 500 employees, including 50 senior engineers and 38 technical managers. Its main products are large and medium-sized wheeled tractors and walking tractors. They are two-wheel drive and four-wheel drive, from 25HP to 220HP. According to the market demand, the company has produced 9 series and more than 70 tractor models. We have 14 registered patents, such as transfer case of medium-sized tractor, integrated flat floor of medium-sized tractor and forced lift of large tractor.
