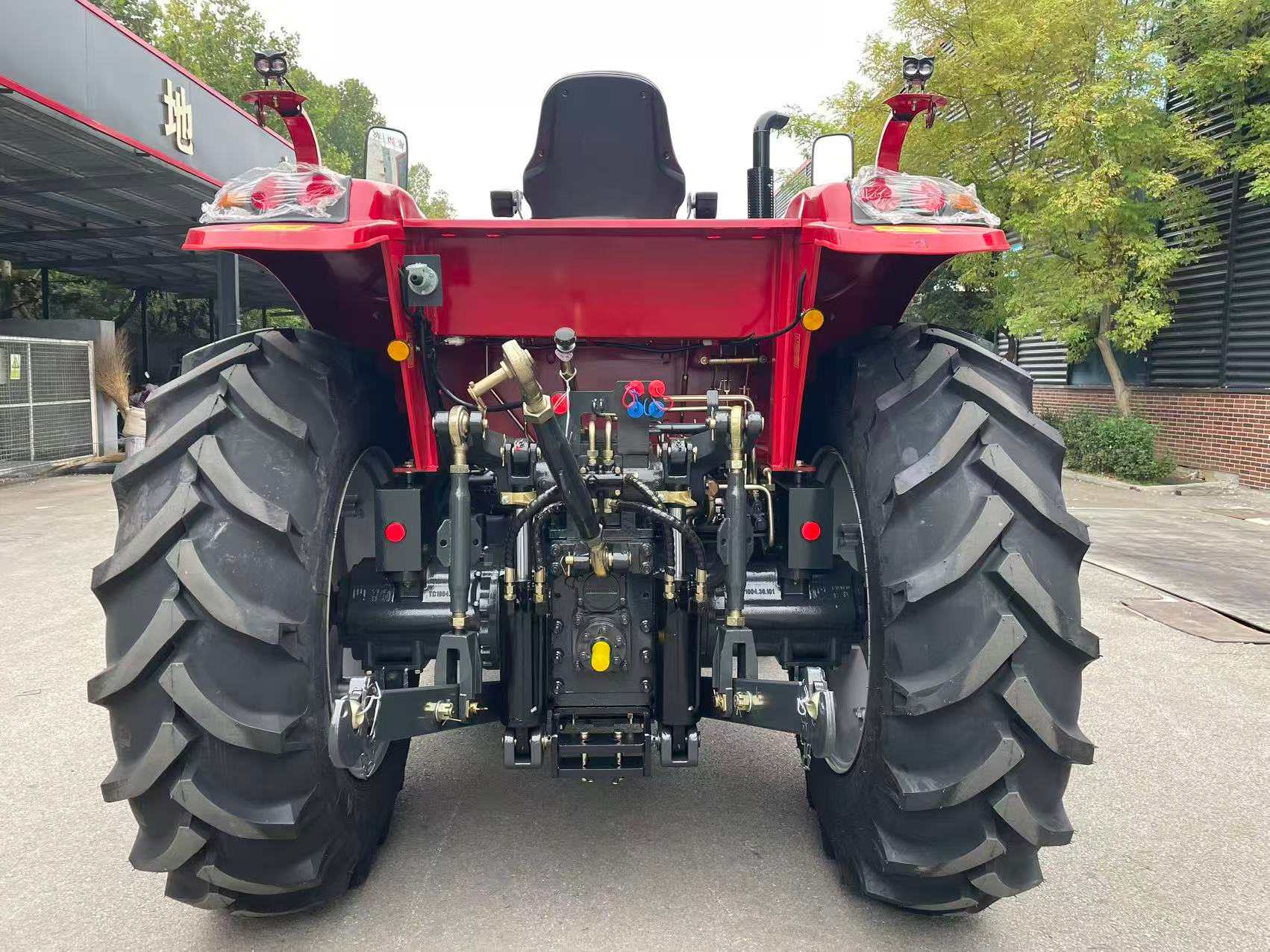

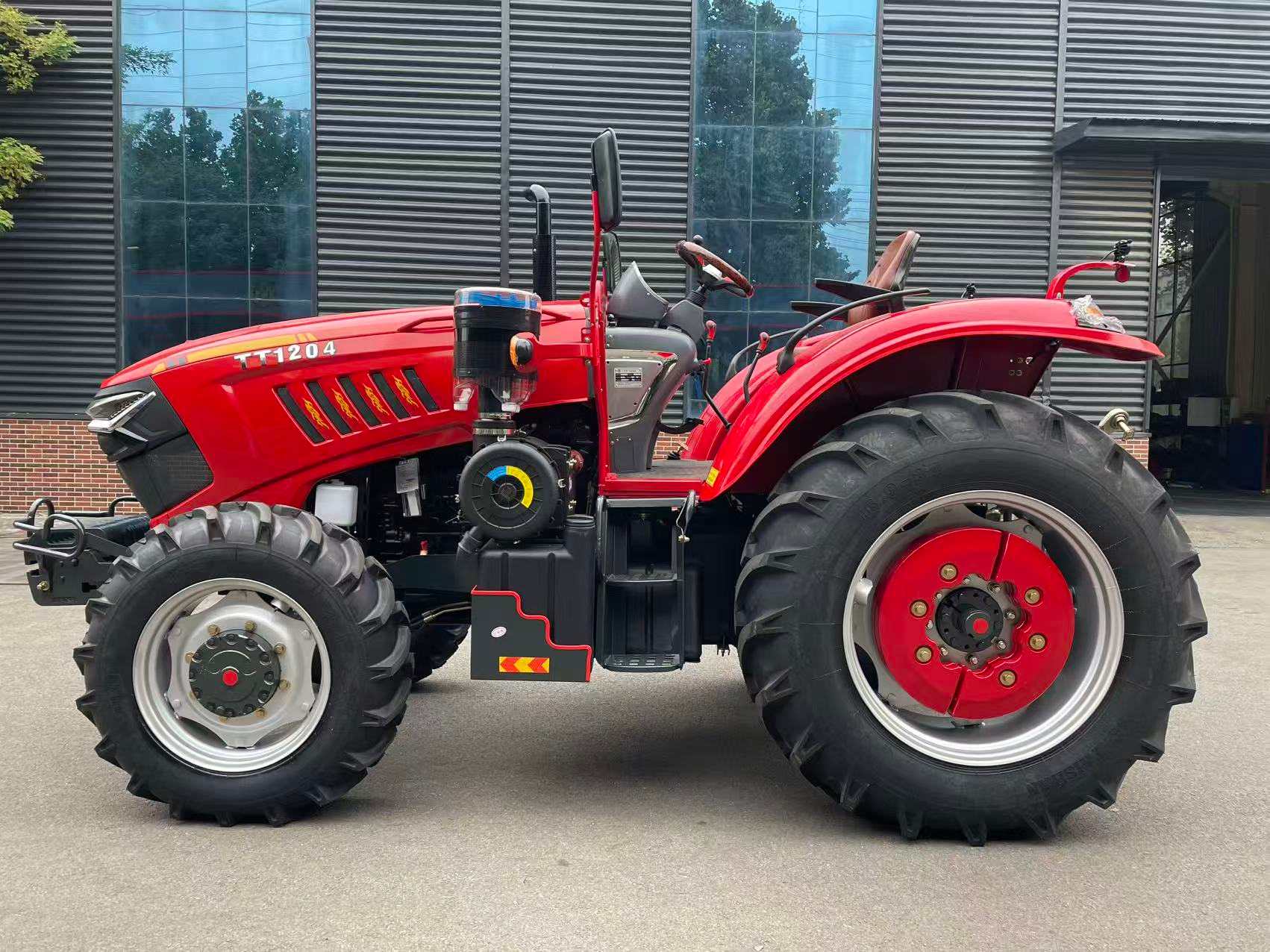

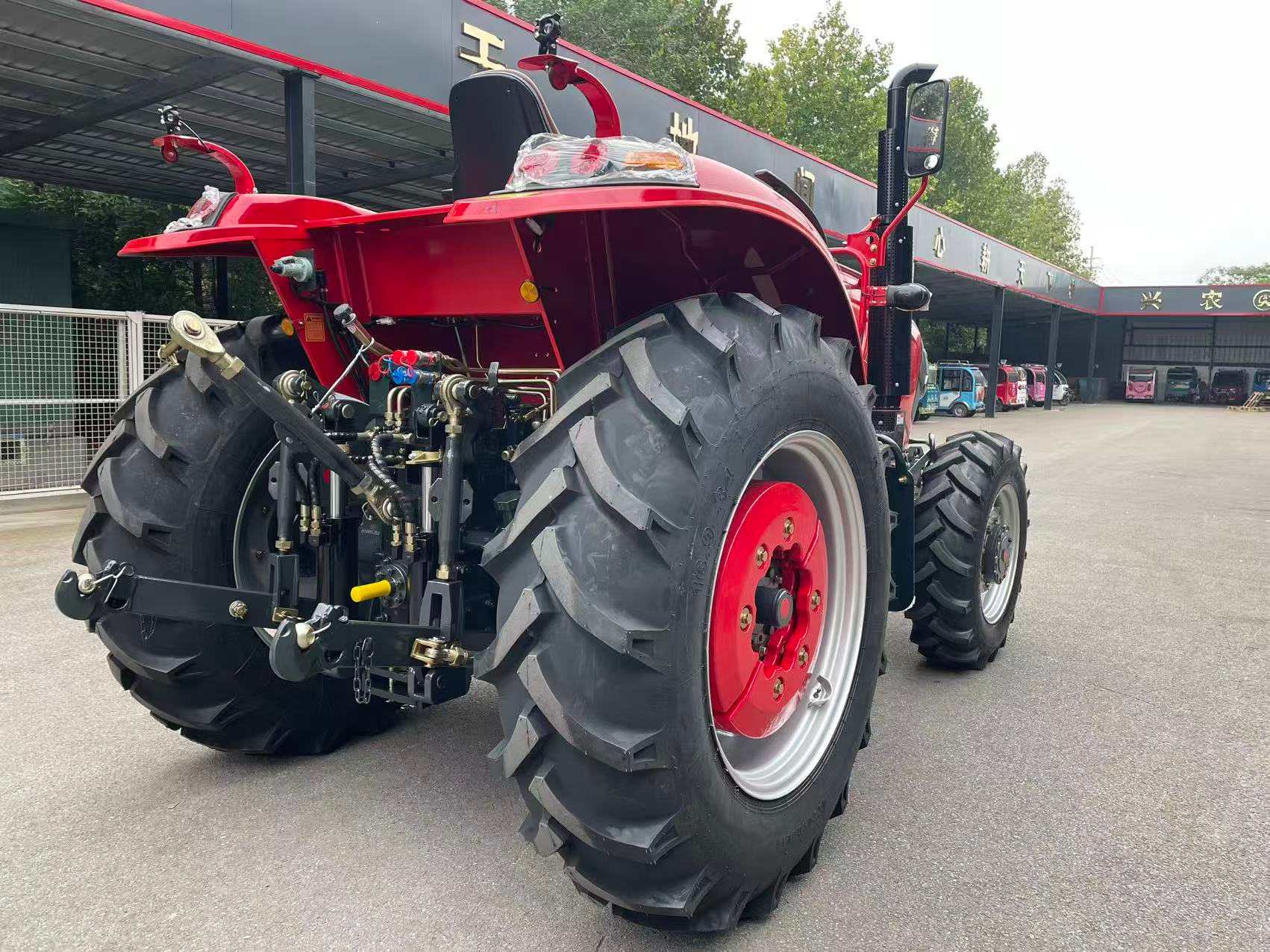

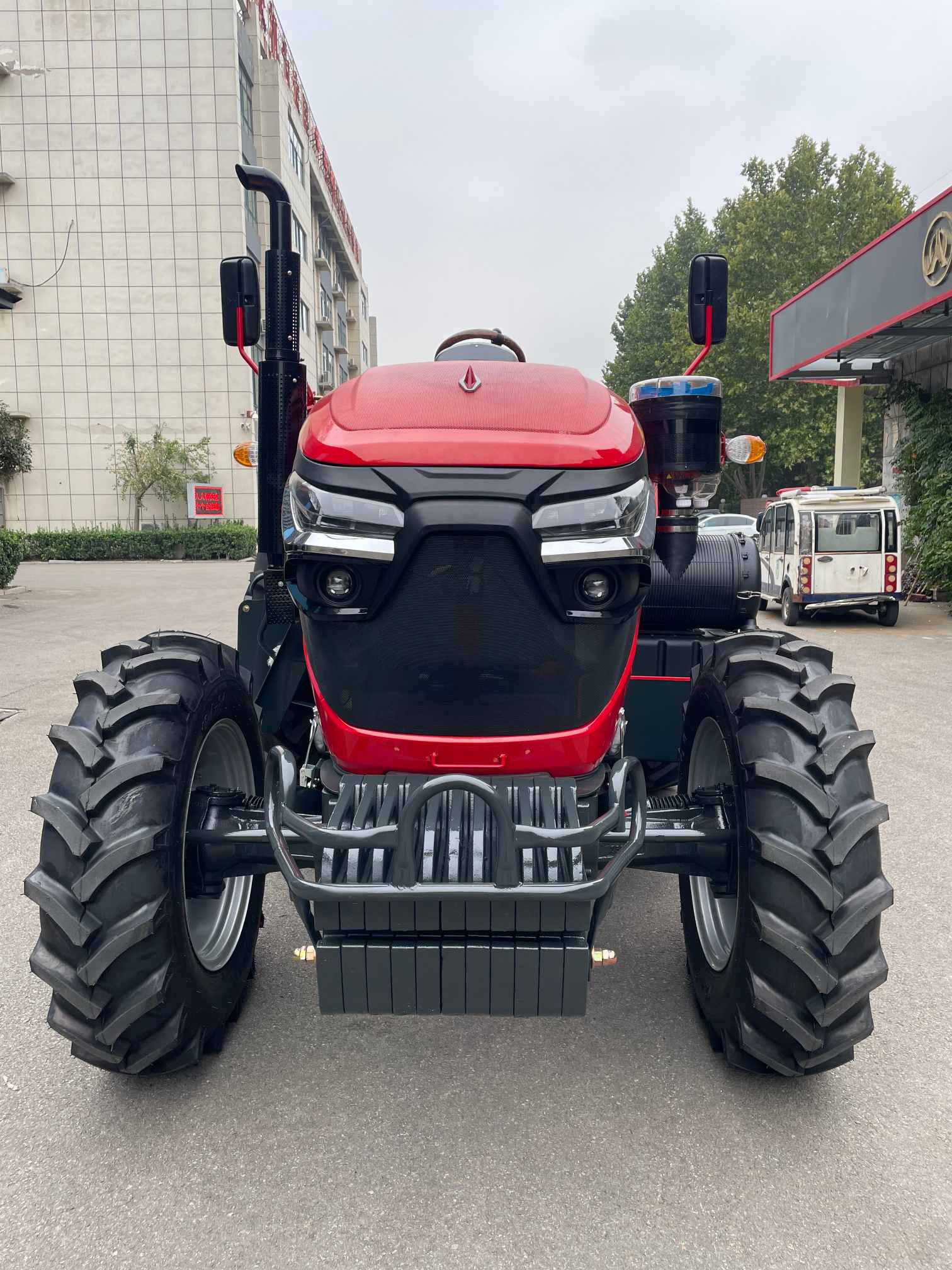

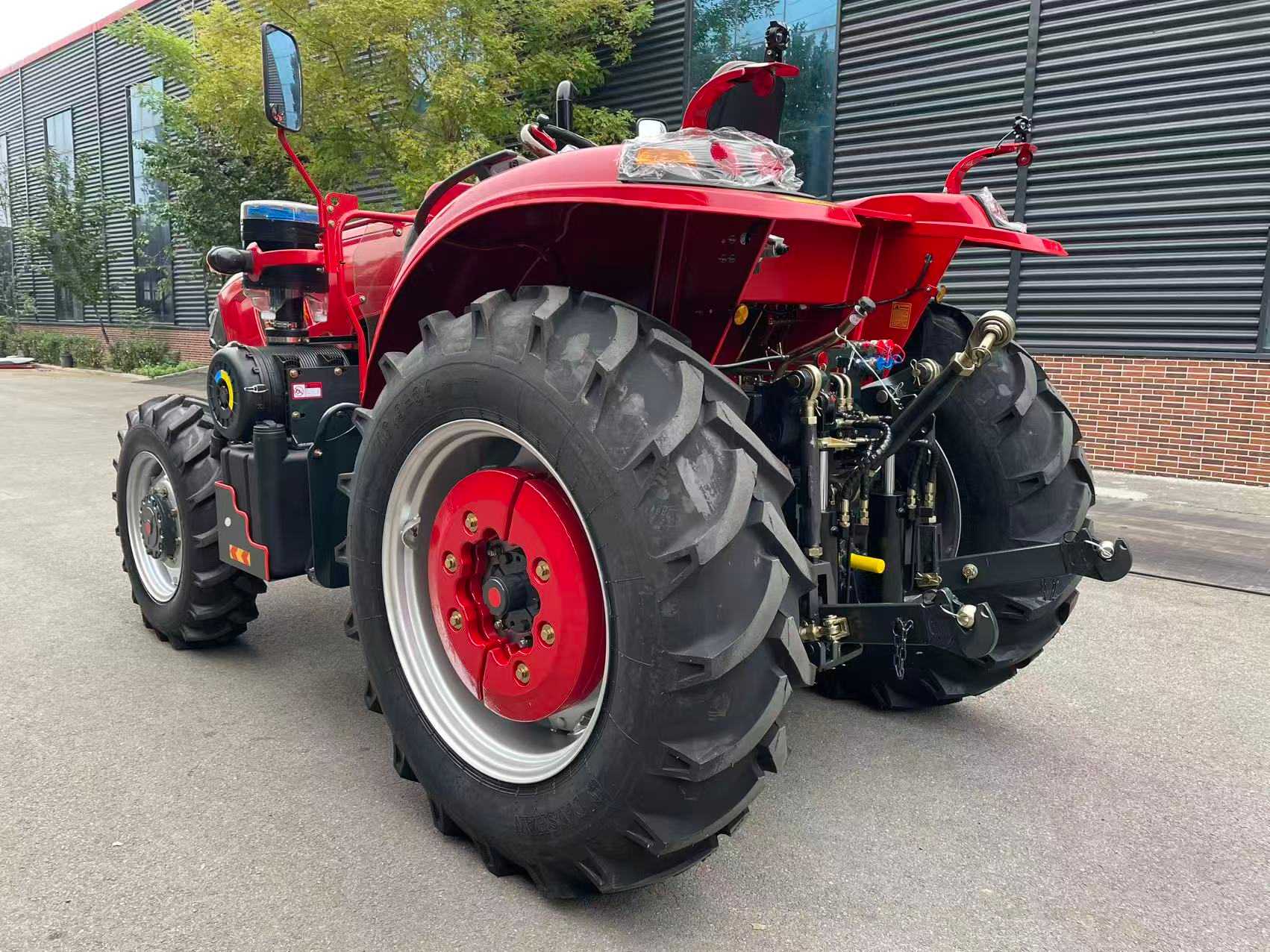

120HP 4WD Farm Tractor CL1204-TD
Body design: The body has a brand new streamlined appearance, optimized hood design, narrowed sides, low front and high rear, and a wide driving field of view; Install a guide groove on the ceiling to effectively solve the problem of water accumulation on the ceiling and improve its service life; Further improve the mudguard, increase the gap between the tire and mudguard, and avoid mud blockage during paddy field operations.
Power performance: Equipped with brand engine , it has low fuel consumption, fast acceleration and strong power.Large capacity fuel tank, strong endurance, capable of continuous and efficient operation.
Smart Convenience: Features like USB ports, phone mounts, cup holders, and solar-powered LED lights enhance efficiency and connectivity during fieldwork.
Durability & Versatility: Robust build handles heavy-duty tasks (plowing, hauling) across diverse terrains, supported by reliable lighting for night operations.
Product parameters:
| Model | Product name | Specification |
| CL1204-TD | 120HP 4WD Farm Tractor | 1. Whole machine weight: 4690 kg 2. Length x Width x Height (mm): 4780 (e.g. without suspension -260mm, e.g. without counterweight -300mm) x 2110x 2600 3. Ground clearance (mm): 400 (bottom of front axle) 4. Wheelbase (mm): 2520 5. Gear Shift Type(front/rear): 16/8 6. Spline of power output shaft: 6 keys 7. PTO Shaft Speed: 760/850 revolutions per minute 8. Front wheel tires: 12.4-24 9. Rear tires: 16.9-34 10. Common wheel track (front/rear) :1600/1700 11. Counterweight(front/rear): 242/320 12. Supporting power: 88.2kW 13. Drive mode: four-wheel drive 14. Maximum traction force ≥ 34.5kN 15.Torque:590N.m 16.Engine Speed:2300r/min 17.Fuel ConsumptionL:322.1g/(kw.h) |
Product details:

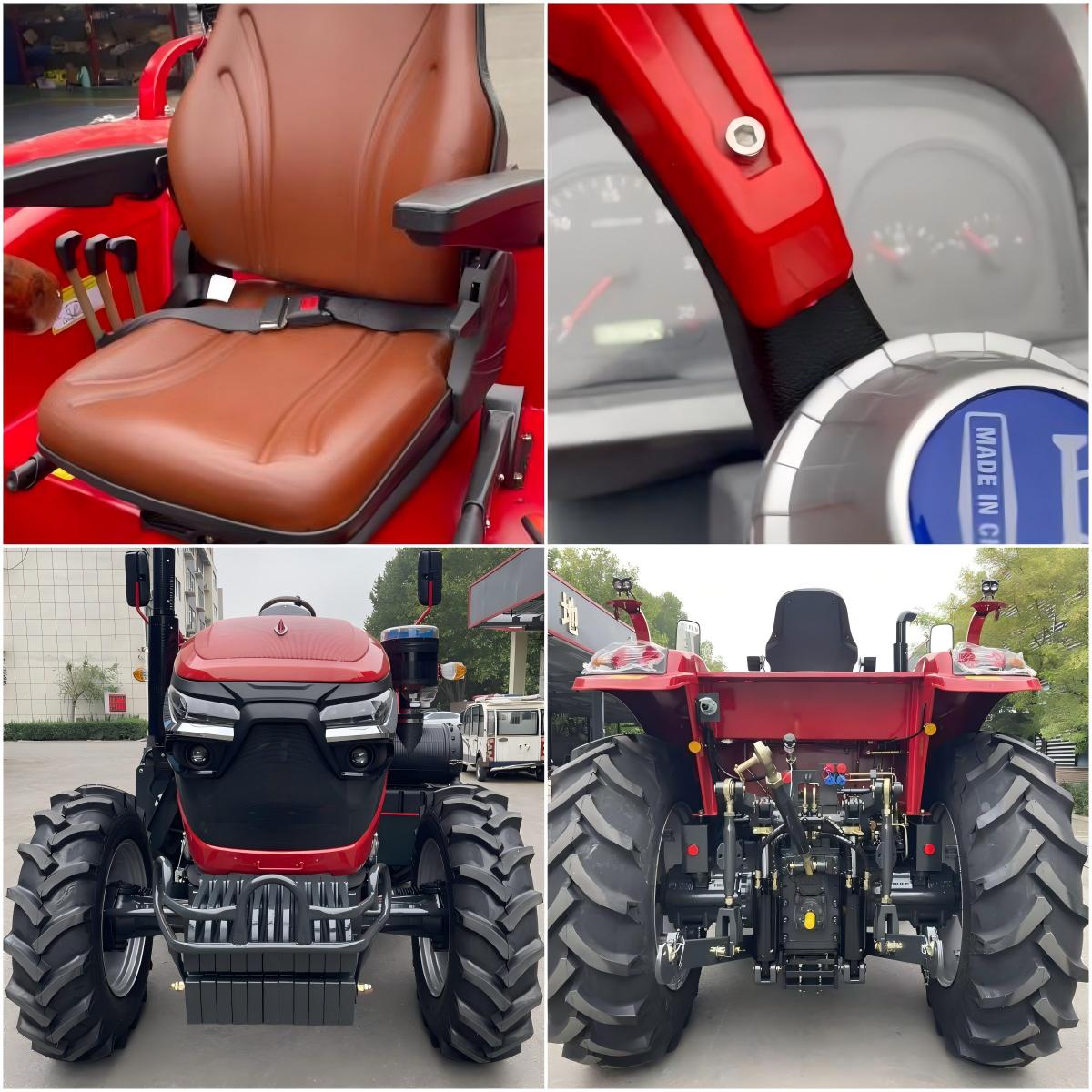

1. Beautiful Tractor Body
The overall height of the rear seat has been increased, making the lifting field wider and without dead corners. Galvanized and reinforced suspension ensures more reliable use and prevents damage after use rust, buckles and rings can be easily loaded and unloaded.
2. Brand-name Rubber Tires
The tires are wide, anti-slip, and wear-resistant. They are suitable for various complex road conditions and have good grip.
3. The Gears Turn
The tractor is easy to maintain, high transmission efficiency, multi-gear control, and stable quality of multiple transmissions.
4. Power is strong
This tractor has a high-power brand engine, with complete after-sales service, on-site service, and quality assurance.
5. Detachable bumper
6. Hydraulic suspension center rod
Provide 600-800 kilograms of high tensile force.
7. Other equipment
The tractor is equipped Hanging electric fan, Phone holder, Cup holder, Clothes hanger, LED warning lights, Solar lights, Toolbox, Tripod, etc.
8. Option Agricultural Implements
Company Profile
Changli industry and Trade Co., Ltd., located in Tengzhou City, Shandong Province, was established in 2007, covering an area of more than 58000 square meters. The company has more than 500 employees, including 50 senior engineers and 38 technical managers. Its main products are large and medium-sized wheeled tractors and walking tractors. They are two-wheel drive and four-wheel drive, from 25HP to 220HP. According to the market demand, the company has produced 9 series and more than 70 tractor models. We have 14 registered patents, such as transfer case of medium-sized tractor, integrated flat floor of medium-sized tractor and forced lift of large tractor.
Exhibitions
Packaging & Shipping
Certifications
1. tractors are specially designed for various light-duty operations such as agriculture and transportation.
2. Equipped with Chinese famous brand diesel engine, it has the advantages of cost-effectiveness, high fuel
efficiency, low maintenance cost and good working performance.
3. Using a central console and mature structure, the tractor is easy to control and maintain.
4. 8F+2R /8F+8R/16+8/24+8 gearbox, simple operation and convenient maintenance.
5. Single/double-acting clutches can be selected to meet different needs and operations; Herringbone tires, paddy tires or other types of tires can be selected to meet your working conditions.
6. Hydraulic power steering (2WD/4WD), easy to control, reduce the labor intensity of the operator.
